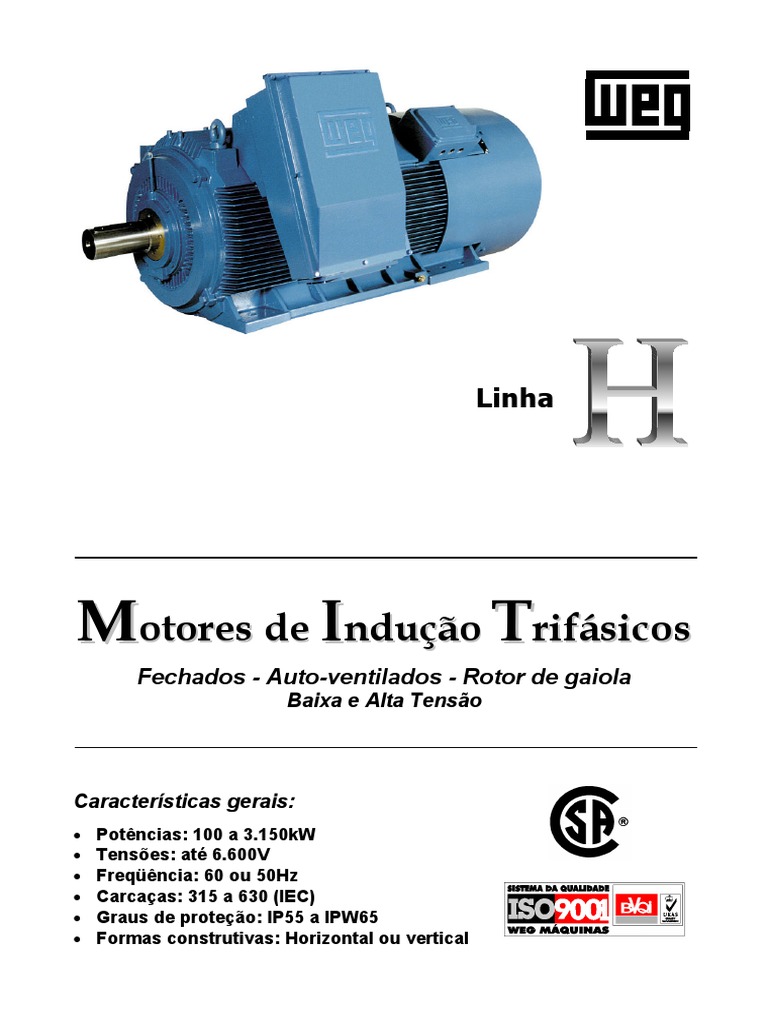

Linha
Motores de Indução Trifásicos

Fechados - Auto-ventilados - Rotor de gaiola
Baixa e Alta Tensão
Características gerais:
• Potências: 100 a 3.150kW
• Tensões: até 6.600V
• Freqüência: 60 ou 50Hz
• Carcaças: 315 a 630 (IEC)
• Graus de proteção: IP55 a IPW65
• Formas construtivas: Horizontal ou vertical
MOTORES DE INDUÇÃO TRIFÁSICOS
LINHA HGF - 440V - 60Hz - ISOLAÇÃO CLASSE F
ELEVAÇÃO DE TEMPERATURA 80ºC - FATOR DE SERVIÇO 1.0
% Potência Nominal Massa

Potência Nominal Carcaça Rotação Corrente Inércia Trb
Ip/In Cp/Cn Cm/Cn Rendimento Fator Potência 2 Aprox.
IEC (rpm) Nominal (A) (Kgm ) (Seg)
kW cv 50 75 100 50 75 100 (kg)
2 PÓLOS
200 275 315A 3562 304.9 7.00 1.50 2.20 93.00 94.20 94.60 0.87 0.89 0.91 2.80 15.0 1300
225 300 315B 3563 343.0 7.00 1.50 2.20 93.00 94.20 94.60 0.87 0.89 0.91 3.20 15.0 1400
250 350 315C 3563 379.9 7.00 1.50 2.20 93.50 94.50 94.90 0.87 0.89 0.91 3.50 15.0 1650
280 370 315C 3565 424.6 7.00 1.50 2.10 93.50 94.60 95.10 0.87 0.89 0.91 4.00 16.0 1750
315 400 315D 3565 472.4 7.00 1.50 2.10 93.60 94.60 95.10 0.88 0.90 0.92 4.50 16.0 1850
355 450 315D 3565 531.9 7.00 1.40 2.10 93.60 94.60 95.20 0.88 0.90 0.92 5.00 17.0 1950
400 500 355B 3565 612.0 7.00 1.40 2.10 94.00 94.80 95.30 0.87 0.89 0.90 5.50 17.0 2350
450 600 355C 3565 688.5 7.00 1.20 2.10 94.00 94.80 95.30 0.87 0.89 0.90 6.00 17.0 2500
500 700 355D 3570 755.0 7.10 1.20 2.00 94.20 94.90 95.50 0.88 0.90 0.91 6.50 17.0 2750
560 750 355D 3570 845.6 7.10 1.20 2.00 94.20 94.90 95.50 0.88 0.90 0.91 7.00 17.0 2950
630 800 400L 3570 951.3 6.80 1.10 2.00 94.50 95.00 95.50 0.88 0.90 0.91 10.90 18.0 3400
x 0.87 Mesma x 0.83 x 0.87 Aproximadamente os mesmos Mesma
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
4 PÓLOS
200 275 315L 1782 318.9 6.50 1.40 2.10 93.00 94.30 94.60 0.82 0.85 0.87 3.50 18.0 1300
225 300 315A 1782 358.0 6.60 1.40 2.10 93.00 94.30 94.80 0.82 0.85 0.87 4.00 18.0 1350
250 350 315B 1783 397.8 6.60 1.40 2.10 93.20 94.30 94.80 0.83 0.85 0.87 4.50 18.0 1400
280 370 315C 1783 444.5 6.60 1.40 2.10 93.40 94.50 95.00 0.83 0.85 0.87 5.20 18.0 1600
315 400 315C 1785 493.4 6.60 1.40 2.10 93.50 94.70 95.20 0.83 0.86 0.88 5.80 20.0 1650
355 450 315D 1785 555.5 6.60 1.40 2.10 93.60 94.80 95.30 0.83 0.86 0.88 6.40 21.0 1720
400 500 315D 1786 617.5 6.70 1.40 2.10 93.70 94.80 95.50 0.84 0.87 0.89 6.90 21.0 1800
450 600 315E 1788 694.0 6.70 1.40 2.10 93.80 94.80 95.60 0.84 0.87 0.89 7.50 21.0 1900
500 700 355C 1788 769.5 6.70 1.40 2.00 93.90 95.00 95.80 0.84 0.87 0.89 11.00 20.0 2700
560 750 355D 1790 860.1 6.70 1.40 2.00 94.10 95.20 96.00 0.84 0.87 0.89 13.00 20.0 2900
630 800 400L 1790 965.5 6.50 1.20 2.00 94.50 95.80 96.20 0.84 0.87 0.89 17.50 20.0 3450
710 900 400L 1790 1088.2 6.50 1.20 2.00 94.50 95.80 96.20 0.84 0.87 0.89 19.50 20.0 3550
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
6 PÓLOS
180 250 315A 1182 288.8 6.20 1.40 2.20 92.50 93.60 94.00 0.79 0.84 0.87 6.90 20.0 1400
200 275 315B 1183 320.2 6.20 1.40 2.20 92.80 93.80 94.20 0.79 0.85 0.87 7.40 20.0 1500
225 300 315B 1183 359.5 6.20 1.30 2.20 93.00 94.00 94.40 0.79 0.86 0.87 8.00 20.0 1630
250 350 315D 1185 394.5 6.20 1.30 2.10 93.00 94.20 94.50 0.79 0.86 0.88 9.80 22.0 1800
280 370 315E 1185 441.4 6.20 1.30 2.10 93.00 94.30 94.60 0.79 0.86 0.88 11.40 22.0 1900
315 400 355A 1185 510.3 6.30 1.30 2.10 93.40 94.70 95.30 0.82 0.84 0.85 13.00 20.0 2200
355 450 355B 1188 567.8 6.30 1.30 2.10 93.50 94.80 95.40 0.83 0.85 0.86 14.40 20.0 2400
400 500 355C 1188 638.4 6.30 1.20 2.00 93.80 95.00 95.60 0.83 0.85 0.86 15.80 20.0 2700
450 600 355D 1190 716.7 6.50 1.20 2.00 94.00 95.00 95.80 0.83 0.85 0.86 17.20 20.0 2900
500 700 400A 1190 796.4 6.50 1.20 2.00 94.20 95.20 95.80 0.83 0.85 0.86 18.21 20.0 3400
560 750 400B 1190 891.9 6.50 1.20 2.00 94.20 95.20 95.80 0.83 0.85 0.86 22.50 20.0 3600
630 800 450A 1190 990.8 6.60 1.10 2.00 94.40 95.40 95.90 0.83 0.86 0.87 36.24 21.0 4900
710 900 450B 1190 1115.5 6.60 1.10 2.00 94.50 95.50 96.00 0.83 0.86 0.87 40.42 21.0 5300
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
8 PÓLOS
125 175 315A 885 213.9 5.80 1.20 2.10 92.20 93.20 93.50 0.73 0.77 0.82 6.27 22.0 1400
140 200 315B 885 238.8 5.80 1.20 2.10 92.50 93.40 93.80 0.73 0.77 0.82 6.50 22.0 1450
160 225 315B 885 269.1 5.90 1.20 2.10 93.00 93.80 94.00 0.73 0.77 0.83 7.00 22.0 1550
180 250 315C 885 302.7 5.90 1.20 2.10 93.00 93.80 94.00 0.73 0.80 0.83 8.10 22.0 1700
200 275 315C 890 336.4 5.90 1.20 2.10 93.00 93.80 94.00 0.73 0.80 0.83 9.00 22.0 1750
225 300 355A 890 380.6 5.90 1.20 2.10 93.00 94.30 94.60 0.73 0.80 0.82 12.79 20.0 2300
250 350 355B 890 416.9 6.00 1.20 2.00 93.20 94.40 94.80 0.73 0.80 0.83 14.20 20.0 2400
280 370 355B 890 466.5 6.00 1.10 2.00 93.40 94.60 94.90 0.74 0.80 0.83 15.91 20.0 2600
315 400 355C 890 523.1 6.00 1.10 2.00 93.50 94.70 95.20 0.74 0.80 0.83 17.90 20.0 2800
355 450 355D 890 587.7 6.00 1.10 2.00 93.70 94.80 95.50 0.75 0.81 0.83 20.17 20.0 3000
400 500 400L 890 655.0 6.00 1.10 1.90 93.80 94.80 95.40 0.75 0.82 0.84 31.27 20.0 3550
450 600 400A 890 736.1 6.00 1.10 1.90 94.00 95.00 95.50 0.75 0.82 0.84 34.80 20.0 3800
500 700 400B 890 817.9 6.00 1.10 1.90 94.00 95.00 95.50 0.75 0.82 0.84 37.80 20.0 3950
560 750 450A 890 913.2 6.10 1.00 1.90 94.30 95.40 95.80 0.76 0.83 0.84 57.28 20.0 5000
630 800 450B 890 1014.2 6.10 1.00 1.90 94.40 95.50 95.90 0.77 0.84 0.85 68.85 20.0 5300
710 900 450C 890 1141.7 6.10 1.00 1.90 94.50 95.60 96.00 0.77 0.84 0.85 75.60 20.0 5500
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
OBS.: Valores sujeitos a alterações sem aviso prévio.
Este folheto é parte integrante do catálogo nº 628 Revisão: 01/10/02

2
ELEVAÇÃO DE TEMPERATURA 80ºC - FATOR DE SERVIÇO 1.0

kW cv 50 75 100 50 75 100 (kg)
10 PÓLOS
125 175 315C 708 247.1 5.70 1.20 2.10 92.50 93.40 93.50 0.55 0.67 0.71 9.30 20.0 1650
140 200 315D 708 276.7 5.70 1.20 2.10 92.50 93.40 93.50 0.55 0.67 0.71 10.40 20.0 1750
160 225 355A 710 313.2 5.90 1.20 2.10 93.20 94.20 94.40 0.55 0.67 0.71 15.30 20.0 2150
180 250 355B 710 352.4 5.90 1.20 2.10 93.20 94.20 94.40 0.55 0.67 0.71 17.00 20.0 2300
200 275 355B 710 391.5 5.90 1.20 2.10 93.20 94.20 94.40 0.55 0.67 0.71 19.00 20.0 2400
225 300 355C 710 440.5 5.90 1.20 2.10 93.20 94.20 94.40 0.55 0.67 0.71 21.80 20.0 2650
250 350 355D 710 489.4 5.90 1.20 2.10 93.20 94.20 94.40 0.55 0.67 0.71 23.80 20.0 2950
280 370 400L 712 511.3 6.00 0.80 2.00 94.20 95.30 95.80 0.62 0.70 0.75 31.30 18.0 3550
315 400 400A 712 575.3 6.00 0.80 2.00 94.20 95.30 95.80 0.62 0.70 0.75 34.00 18.0 3850
355 450 400B 712 648.3 6.00 0.80 2.00 94.20 95.30 95.80 0.62 0.70 0.75 38.80 18.0 4100
400 500 400C 712 730.5 6.00 0.80 2.00 94.20 95.30 95.80 0.62 0.70 0.75 43.60 18.0 4700
450 600 400D 712 821.8 6.00 0.80 2.00 94.20 95.30 95.80 0.62 0.70 0.75 48.40 18.0 4950
500 700 450L 712 911.2 6.40 0.80 1.90 94.80 95.80 96.00 0.62 0.70 0.75 63.00 15.0 5000
560 750 450A 712 1020.6 6.40 0.80 1.90 94.80 95.80 96.00 0.62 0.70 0.75 73.40 15.0 5350
630 800 450B 712 1148.1 6.40 0.80 1.90 94.80 95.80 96.00 0.62 0.70 0.75 87.30 15.0 5900
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
12 PÓLOS
125 175 355B 594 235.8 5.90 0.90 2.00 92.50 93.00 94.00 0.53 0.66 0.74 16.00 20.0 2150
140 200 355B 594 263.5 5.90 0.90 2.00 92.50 93.80 94.20 0.53 0.66 0.74 18.00 20.0 2300
160 225 355C 594 300.5 5.90 0.90 2.00 93.00 94.00 94.40 0.53 0.66 0.74 20.00 20.0 2400
180 250 355D 594 337.8 5.90 0.90 2.00 93.20 94.40 94.50 0.53 0.66 0.74 22.00 20.0 2650
200 275 355E 594 374.9 5.90 0.90 2.00 93.20 94.30 94.60 0.53 0.66 0.74 24.00 20.0 2950
225 300 400A 594 402.8 6.00 0.80 1.90 93.50 94.70 95.20 0.61 0.72 0.77 34.00 18.0 3850
250 350 400B 594 447.0 6.00 0.80 1.90 93.80 94.80 95.30 0.61 0.72 0.77 38.80 18.0 4100
280 370 400C 594 499.6 6.00 0.80 1.90 94.00 52.10 95.50 0.61 0.72 0.77 43.60 18.0 4700
315 400 400D 594 560.3 6.00 0.80 1.90 94.20 95.30 95.80 0.61 0.72 0.77 48.40 18.0 4950
355 450 450L 594 634.8 6.00 0.80 1.90 94.10 95.10 95.30 0.61 0.73 0.77 63.00 18.0 5000
400 500 450A 594 713.8 6.00 0.80 1.90 94.30 95.30 95.50 0.61 0.73 0.77 73.40 18.0 5350
450 600 450B 594 802.1 6.00 0.80 1.90 94.50 95.50 95.60 0.61 0.73 0.77 87.30 18.0 5900
500 700 500C 593 919.8 5.80 0.80 2.00 94.10 95.00 95.10 0.58 0.69 0.75 123.00 21.0 8400
560 750 500D 593 1028.1 5.80 0.80 2.00 94.10 95.10 95.30 0.58 0.69 0.75 145.00 21.0 9000
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz

3
ELEVAÇÃO DE TEMPERATURA 80°C - FATOR DE SERVIÇO 1.0

kW cv 50 75 100 50 75 100 (kg)
2 PÓLOS
100 135 315L 3555 31.0 6.60 1.40 2.10 88.00 90.50 91.00 0.82 0.87 0.89 2.44 17.0 1200
112 150 315A 3555 34.6 6.60 1.40 2.10 88.50 90.60 91.20 0.82 0.87 0.89 2.50 17.0 1250
125 175 315A 3558 38.5 6.70 1.40 2.10 88.80 90.80 91.50 0.82 0.87 0.89 2.63 17.0 1300
140 200 315B 3558 43.1 6.70 1.40 2.10 89.00 90.80 91.60 0.82 0.87 0.89 2.76 18.0 1350
160 225 315B 3558 49.2 6.70 1.40 2.10 89.20 91.00 91.80 0.82 0.87 0.89 2.90 18.0 1400
180 250 315C 3560 55.2 6.70 1.40 2.10 89.20 91.00 92.00 0.82 0.87 0.89 3.38 18.0 1500
200 275 315C 3560 61.2 6.70 1.40 2.10 89.20 91.10 92.20 0.82 0.87 0.89 3.70 18.0 1650
225 300 315D 3562 67.9 6.80 1.40 2.10 89.40 91.20 92.40 0.83 0.88 0.90 4.03 18.0 1750
250 350 315D 3562 75.4 6.80 1.40 2.00 89.50 91.30 92.50 0.83 0.88 0.90 4.35 18.0 1850
280 370 315E 3565 84.2 6.80 1.40 2.00 89.80 91.40 92.80 0.83 0.88 0.90 4.54 19.0 1950
315 400 355B 3565 94.3 6.80 1.30 2.00 90.50 91.60 93.20 0.83 0.88 0.90 5.05 19.0 2200
355 450 355C 3565 105.9 6.80 1.30 2.00 91.00 92.00 93.50 0.84 0.89 0.90 5.53 20.0 2550
400 500 355C 3565 118.9 6.80 1.30 2.00 91.20 92.50 93.80 0.84 0.89 0.90 6.16 21.0 2650
450 600 355D 3566 133.5 6.80 1.30 2.00 91.80 92.80 94.00 0.84 0.89 0.90 6.79 21.0 2750
500 700 355E 3568 148.0 6.80 1.30 2.00 92.00 93.00 94.20 0.84 0.89 0.90 7.34 21.0 2850
560 750 400L 3568 163.5 6.60 1.10 2.00 92.20 93.50 94.50 0.84 0.90 0.91 11.00 20.0 3300
630 800 450L 3570 183.9 7.00 1.10 1.90 92.30 93.50 94.50 0.84 0.90 0.91 14.22 22.0 4500
710 900 450A 3570 206.6 7.00 1.10 1.90 92.50 93.70 94.80 0.84 0.90 0.91 15.13 22.0 4800
800 1000 450B 3570 232.3 7.00 1.10 1.90 92.60 93.90 95.00 0.84 0.90 0.91 16.48 22.0 5100
900 1250 450C 3570 260.8 7.00 1.10 1.90 92.80 94.00 95.20 0.85 0.90 0.91 17.39 22.0 5400
1000 1350 450D 3570 288.8 7.00 1.10 1.90 93.00 94.20 95.50 0.85 0.90 0.91 19.32 22.0 5700
1120 1500 450D 3570 322.5 7.00 1.10 1.80 93.20 94.50 95.80 0.85 0.90 0.91 22.52 22.0 5900
1250 1750 500L 3570 359.6 7.00 1.10 1.80 93.50 94.80 95.90 0.86 0.90 0.91 26.56 21.0 6400
1400 2000 500A 3570 402.3 7.00 1.00 1.80 93.80 95.00 96.00 0.86 0.90 0.91 29.75 21.0 7250
1600 2250 500B 3570 459.3 7.00 1.00 1.80 94.00 95.10 96.10 0.86 0.90 0.91 34.00 21.0 7800
1800 2500 560L 3570 511.1 7.00 1.00 1.80 94.00 95.20 96.10 0.87 0.91 0.92 36.36 21.0 9750
2000 2750 560A 3570 567.3 7.00 1.00 1.80 94.10 95.20 96.20 0.87 0.91 0.92 40.40 21.0 9900
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
4 PÓLOS
100 135 315L 1780 33.1 6.20 1.30 2.10 91.60 92.00 92.40 0.72 0.78 0.82 2.70 21.0 1160
112 150 315L 1780 36.9 6.20 1.30 2.10 92.00 92.50 92.80 0.72 0.78 0.82 2.90 21.0 1190
125 175 315L 1780 41.1 6.30 1.30 2.10 92.40 92.90 93.20 0.72 0.78 0.82 3.15 21.0 1230
140 200 315A 1780 45.3 6.30 1.30 2.10 92.80 93.20 93.50 0.73 0.78 0.83 3.35 21.0 1260
160 225 315A 1780 51.6 6.30 1.30 2.10 93.00 93.50 93.80 0.73 0.79 0.83 3.45 22.0 1300
180 250 315A 1781 57.8 6.30 1.30 2.10 93.40 93.70 94.20 0.74 0.79 0.83 3.95 22.0 1330
200 275 315B 1781 63.3 6.30 1.20 2.10 93.60 94.00 94.40 0.74 0.79 0.84 4.15 22.0 1370
225 300 315B 1781 71.0 6.30 1.20 2.10 93.80 94.20 94.70 0.75 0.80 0.84 4.50 22.0 1420
250 350 315C 1781 78.8 6.30 1.20 2.00 94.00 94.40 94.80 0.75 0.80 0.84 4.90 22.0 1650
280 370 315C 1781 87.0 6.30 1.10 2.00 94.00 94.60 95.00 0.75 0.80 0.85 5.40 22.0 1750
315 400 315D 1782 97.7 6.40 1.10 2.00 94.20 94.80 95.20 0.76 0.80 0.85 5.80 23.0 1850
355 450 315E 1782 109.8 6.40 1.10 2.00 94.40 95.00 95.50 0.76 0.81 0.85 6.40 23.0 1950
400 500 315E 1784 123.7 6.40 1.10 2.00 94.50 95.00 95.50 0.78 0.81 0.85 6.80 23.0 2050
450 600 355C 1784 138.7 6.40 1.00 1.90 94.60 95.20 95.80 0.78 0.81 0.85 9.78 21.0 2400
500 700 355D 1785 154.0 6.40 1.00 1.90 94.80 95.40 95.90 0.76 0.81 0.85 10.71 21.0 2600
560 750 355E 1785 170.3 6.40 1.00 1.90 95.00 95.80 96.00 0.79 0.82 0.86 11.64 21.0 2800
630 800 400A 1788 191.0 6.50 1.00 1.90 95.30 96.00 96.30 0.81 0.83 0.86 13.00 21.0 3200
710 900 400A 1788 215.2 6.50 1.00 1.90 95.30 96.00 96.30 0.81 0.83 0.86 13.80 21.0 3300
800 1000 400B 1790 242.5 6.60 1.00 1.80 95.30 96.00 96.30 0.81 0.83 0.86 15.17 21.0 3650
900 1250 400D 1790 272.5 6.60 1.00 1.80 95.40 96.10 96.40 0.81 0.83 0.86 17.00 21.0 4000
1000 1350 450B 1790 302.5 6.60 0.90 1.80 95.50 96.20 96.50 0.81 0.83 0.86 20.10 21.0 4800
1120 1500 450C 1790 338.4 6.60 0.90 1.80 95.60 96.30 96.60 0.81 0.83 0.86 23.20 21.0 5100
1250 1750 450D 1790 377.3 6.60 0.90 1.80 95.70 96.40 96.70 0.81 0.83 0.86 23.20 21.0 5350
1400 2000 450D 1790 417.3 6.60 0.80 1.80 95.70 96.40 96.80 0.81 0.84 0.87 25.70 21.0 5750
1600 2250 500A 1790 476.9 6.70 0.80 1.80 95.70 96.50 96.80 0.81 0.84 0.87 43.10 21.0 6350
1800 2500 500B 1790 536.5 6.80 0.80 1.80 95.80 96.50 96.80 0.82 0.85 0.87 49.10 21.0 7050
2000 2750 500C 1790 596.1 6.80 0.80 1.80 95.80 96.60 96.80 0.82 0.85 0.87 55.60 21.0 7750
2250 3000 560L 1790 662.4 6.80 0.80 1.80 95.80 96.60 96.90 0.83 0.86 0.88 82.00 21.0 9300
2500 3500 560B 1790 738.2 6.80 0.80 1.80 95.50 96.30 96.60 0.83 0.85 0.88 109.20 21.0 10500
2800 3700 630B 1790 826.8 7.00 0.80 1.80 95.50 96.30 96.60 0.83 0.85 0.88 200.00 21.0 10500
3150 4000 630C 1790 930.2 7.00 0.80 1.80 95.50 96.30 96.60 0.83 0.85 0.88 240.00 21.0 11500
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz

4

kW cv 50 75 100 50 75 100 (kg)
6 PÓLOS
100 135 315L 1180 33.1 5.60 1.30 2.00 91.30 92.10 92.50 0.68 0.76 0.82 4.80 20.0 1200
112 150 315L 1180 37.0 5.60 1.30 2.00 91.50 92.30 92.60 0.68 0.76 0.82 5.20 20.0 1250
125 175 315A 1180 41.2 5.70 1.30 2.00 91.60 92.50 92.80 0.68 0.72 0.82 5.90 20.0 1300
140 200 315A 1180 46.1 5.70 1.30 2.00 91.80 92.60 93.00 0.69 0.76 0.82 6.60 20.0 1350
160 225 315B 1180 52.6 5.80 1.30 2.00 92.00 92.80 93.20 0.69 0.77 0.82 6.70 20.0 1400
180 250 315C 1180 58.2 5.80 1.30 2.00 92.30 93.00 93.50 0.70 0.77 0.83 7.90 20.0 1550
200 275 315C 1180 64.5 5.80 1.30 2.00 92.60 93.10 93.80 0.71 0.78 0.83 8.50 20.0 1630
225 300 315D 1180 72.4 5.90 1.30 2.00 92.80 93.40 94.00 0.72 0.78 0.83 9.40 20.0 1700
250 350 315E 1181 80.2 5.90 1.30 2.00 93.00 93.50 94.30 0.72 0.78 0.83 10.40 20.0 1800
280 370 315E 1181 88.5 5.90 1.30 2.00 93.00 93.80 94.50 0.73 0.79 0.84 11.20 20.0 1900
315 400 355C 1181 99.3 6.00 1.20 2.00 93.20 94.00 94.80 0.73 0.79 0.84 11.40 21.0 2500
355 450 355D 1182 111.7 6.00 1.20 2.00 93.40 94.20 95.00 0.73 0.79 0.84 12.70 21.0 2650
400 500 355E 1182 125.6 6.00 1.20 2.00 93.60 94.40 95.20 0.73 0.79 0.84 14.50 21.0 2800
450 600 355E 1182 141.1 6.00 1.20 2.00 93.70 94.50 95.30 0.74 0.80 0.84 16.00 21.0 2950
500 700 400A 1185 156.5 6.00 1.20 2.00 93.80 94.60 95.50 0.74 0.80 0.84 17.40 21.0 3350
560 750 400B 1186 174.9 6.00 1.20 2.00 94.00 94.80 95.70 0.74 0.80 0.84 19.50 21.0 3550
630 800 400C 1185 194.2 6.10 1.10 1.90 94.00 94.90 95.80 0.74 0.81 0.85 21.30 21.0 3750
710 900 400D 1185 218.4 6.10 1.10 1.90 94.10 95.00 96.00 0.74 0.81 0.85 23.90 21.0 3900
800 1000 450C 1187 243.0 6.10 1.00 1.90 94.20 95.10 96.10 0.75 0.82 0.86 40.60 21.0 4650
900 1250 450D 1187 273.1 6.10 1.00 1.90 94.40 95.20 96.20 0.76 0.82 0.86 45.30 21.0 5150
1000 1350 450D 1187 303.1 6.10 1.00 1.90 94.50 95.30 96.30 0.76 0.83 0.86 49.20 21.0 5350
1120 1500 500L 1188 339.1 6.20 0.90 1.80 94.70 95.40 96.40 0.76 0.83 0.86 70.00 21.0 5550
1250 1750 500A 1188 378.1 6.20 0.90 1.80 94.80 95.50 96.50 0.77 0.83 0.86 90.50 21.0 5950
1400 2000 500B 1188 423.5 6.10 0.90 1.80 95.00 95.50 96.50 0.77 0.83 0.86 99.20 21.0 6900
1600 2250 560L 1190 477.9 6.20 0.80 1.80 95.00 95.60 96.60 0.78 0.84 0.87 115.00 21.0 7200
1800 2500 560A 1190 537.6 6.20 0.80 1.80 95.10 95.70 96.60 0.78 0.84 0.87 150.50 21.0 8450
2000 2750 560B 1190 598.0 6.20 0.80 1.80 95.20 95.80 96.50 0.78 0.84 0.87 163.30 21.0 9000
2250 3000 630B 1190 672.7 6.80 0.80 1.80 95.20 95.80 96.50 0.78 0.84 0.87 210.00 21.0 9800
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
8 PÓLOS
100 135 315L 886 34.9 5.20 1.20 2.00 91.30 92.00 92.30 0.66 0.74 0.78 6.30 21.0 1350
112 150 315A 886 39.0 5.20 1.20 2.00 91.50 92.10 92.50 0.66 0.74 0.78 6.44 21.0 1400
125 175 315B 886 42.7 5.30 1.20 2.00 91.70 92.30 93.00 0.67 0.74 0.79 7.08 21.0 1450
140 200 315C 887 47.7 5.30 1.20 2.00 91.90 92.50 93.20 0.67 0.75 0.79 8.60 21.0 1550
160 225 315C 887 54.4 5.30 1.20 2.00 92.00 92.60 93.50 0.67 0.75 0.79 10.40 21.0 1650
180 250 315D 888 60.3 5.40 1.20 2.00 92.20 92.80 93.70 0.67 0.76 0.80 10.80 21.0 1750
200 275 315E 888 66.8 5.40 1.20 2.00 92.30 92.90 93.90 0.68 0.76 0.80 11.22 21.0 1850
225 300 355L 889 74.1 5.40 1.10 2.00 92.50 93.00 94.10 0.68 0.76 0.81 14.40 21.0 2300
250 350 355A 889 82.2 5.50 1.10 2.00 92.60 93.20 94.30 0.70 0.76 0.81 16.33 21.0 2400
280 370 355B 890 90.7 5.50 1.10 2.00 92.80 93.30 94.50 0.70 0.78 0.82 18.25 21.0 2500
315 400 355C 890 101.8 5.60 1.10 2.00 93.00 93.50 94.70 0.70 0.78 0.82 20.90 21.0 2750
355 450 355C 890 113.3 5.60 1.00 2.00 93.10 93.70 94.80 0.70 0.79 0.83 21.25 21.0 3000
400 500 400L 890 127.5 5.60 1.00 2.00 93.20 93.80 94.90 0.70 0.79 0.83 32.92 21.0 3500
450 600 400A 891 143.3 5.60 0.90 1.90 93.40 93.90 95.00 0.71 0.79 0.83 36.30 21.0 3600
500 700 400B 891 158.8 5.60 0.90 1.90 93.50 94.00 95.20 0.71 0.79 0.83 39.00 21.0 3700
560 750 400C 891 177.7 5.60 0.90 1.90 93.60 94.30 95.30 0.72 0.80 0.83 42.50 21.0 3850
630 800 400C 891 197.1 5.60 0.90 1.90 93.80 94.40 95.50 0.72 0.80 0.84 47.30 21.0 4000
710 900 450A 891 221.5 5.70 0.90 1.90 94.00 94.60 95.80 0.72 0.80 0.84 61.94 21.0 5300
800 1000 450B 892 248.8 5.70 0.90 1.90 94.10 94.80 96.10 0.74 0.81 0.84 68.46 21.0 6050
900 1250 500L 892 276.3 5.80 0.90 1.90 94.20 95.00 96.20 0.75 0.81 0.85 103.00 21.0 6100
1000 1350 500A 892 307.0 5.80 0.90 1.90 94.40 95.10 96.20 0.75 0.81 0.85 112.90 21.0 6350
1120 1500 500B 893 343.1 5.80 0.90 1.90 94.60 95.20 96.40 0.76 0.81 0.85 125.30 21.0 7050
1250 1750 500C 893 382.5 5.80 0.90 1.90 94.70 95.30 96.50 0.76 0.81 0.85 131.57 21.0 7450
1400 2000 560A 893 425.2 5.80 0.80 1.80 94.50 95.10 96.10 0.75 0.81 0.86 210.00 20.0 8400
1600 2250 560B 893 486.0 5.80 0.80 1.80 94.50 95.10 96.10 0.75 0.81 0.86 250.23 20.0 9700
1800 2500 630A 893 545.0 6.30 0.80 1.80 94.60 95.30 96.40 0.75 0.81 0.86 290.00 20.0 10700
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz

5

kW cv 50 75 100 50 75 100 (kg)
10 PÓLOS
125 175 355B 710 51.1 6.00 1.20 2.10 90.80 92.30 93.00 0.45 0.58 0.66 15.30 20.0 2300
140 200 355C 710 57.3 6.00 1.20 2.10 90.80 92.30 93.00 0.45 0.58 0.66 17.00 20.0 2500
160 225 355C 710 65.2 6.00 1.20 2.10 91.00 92.80 93.40 0.45 0.58 0.66 19.80 20.0 2650
180 250 355D 710 73.3 6.00 1.20 2.10 91.00 92.80 93.40 0.45 0.58 0.66 22.70 20.0 2850
200 275 355E 710 81.4 6.00 1.20 2.10 91.00 92.80 93.40 0.45 0.58 0.66 23.80 20.0 3000
225 300 400L 710 79.8 6.20 1.00 2.00 93.80 94.20 94.40 0.57 0.69 0.75 32.20 20.0 3600
250 350 400A 710 88.6 6.20 1.00 2.00 93.80 94.20 94.40 0.57 0.69 0.75 35.70 20.0 3900
280 370 400A 710 99.3 6.20 1.00 2.00 93.80 94.20 94.40 0.57 0.69 0.75 36.50 20.0 4000
315 400 450A 710 111.4 6.20 0.80 1.80 93.90 94.40 94.60 0.57 0.69 0.75 47.90 20.0 4750
355 450 450B 710 125.6 6.20 0.80 1.80 93.90 94.40 94.60 0.57 0.69 0.75 49.10 20.0 4850
400 500 450C 710 138.8 6.20 0.80 1.80 94.20 95.00 95.20 0.57 0.70 0.76 64.00 20.0 5300
450 600 450D 710 156.1 6.20 0.80 1.80 94.20 95.00 95.20 0.57 0.70 0.76 75.30 20.0 6050
500 700 450D 710 173.5 6.20 0.80 1.80 94.20 95.00 95.20 0.57 0.70 0.76 81.50 20.0 6100
560 750 500L 714 193.7 6.20 0.80 1.80 94.50 95.40 95.50 0.57 0.70 0.76 116.30 20.0 7800
630 800 500A 714 217.9 6.20 0.80 1.80 94.50 95.40 95.50 0.57 0.70 0.76 125.20 20.0 8400
710 900 500B 714 245.6 6.20 0.80 1.80 94.50 95.40 95.50 0.57 0.70 0.76 144.40 20.0 9500
800 1000 560L 714 275.2 6.20 0.80 1.80 94.70 95.50 96.00 0.58 0.70 0.76 223.00 20.0 11250
900 1250 560A 714 309.6 6.20 0.80 1.80 94.70 95.50 96.00 0.58 0.70 0.76 257.50 20.0 13000
1000 1350 630A 710 328.2 6.00 0.80 1.80 94.10 94.70 95.60 0.68 0.75 0.80 220.00 21.0 10300
1120 1500 630B 710 366.5 6.00 0.80 1.80 94.20 94.90 95.90 0.68 0.75 0.80 260.00 21.0 10800
1250 1750 630B 710 408.1 6.00 0.80 1.80 94.30 95.00 96.10 0.68 0.75 0.80 300.00 21.0 11200
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
12 PÓLOS
140 200 400L 594 52.5 5.90 0.90 2.00 91.00 92.00 93.00 0.55 0.67 0.72 27.50 20.0 3850
160 225 400B 594 59.7 5.90 0.90 2.00 91.00 92.40 93.40 0.55 0.67 0.72 30.50 20.0 3950
180 250 400C 594 67.0 5.90 0.90 2.00 92.00 94.60 93.60 0.55 0.67 0.72 33.50 20.0 4150
200 275 400D 594 74.5 5.90 0.90 2.00 92.00 94.60 93.60 0.55 0.67 0.72 36.50 20.0 4250
225 300 450B 594 82.9 5.80 0.80 2.00 93.50 94.40 94.60 0.56 0.69 0.72 38.00 21.0 5000
250 350 450B 594 92.1 5.80 0.80 2.00 93.50 94.40 94.60 0.56 0.69 0.72 45.00 21.0 5500
280 370 450C 594 103.0 5.80 0.80 2.00 93.60 94.50 94.80 0.56 0.69 0.72 52.00 21.0 5700
315 400 450D 594 115.7 5.80 0.80 2.00 94.00 94.70 94.90 0.56 0.69 0.72 60.00 21.0 5900
355 450 450E 594 130.1 5.80 0.80 2.00 94.20 94.90 95.10 0.56 0.69 0.72 68.00 21.0 6300
400 500 500B 594 140.8 5.80 0.80 2.00 94.00 95.00 95.10 0.60 0.70 0.75 91.00 21.0 7900
450 600 500C 594 158.4 5.80 0.80 2.00 94.10 95.00 95.10 0.60 0.70 0.75 103.00 21.0 8400
500 700 500D 594 175.6 5.80 0.80 2.00 94.10 95.10 95.30 0.60 0.70 0.75 115.00 21.0 9000
560 750 560B 594 197.1 5.80 0.80 2.00 94.20 95.00 95.10 0.60 0.70 0.75 200.00 20.0 13200
630 800 560C 594 221.3 5.80 0.80 2.00 94.30 95.10 95.30 0.60 0.70 0.75 221.00 20.0 14000
710 900 560D 594 248.8 5.80 0.80 2.00 94.30 95.30 95.50 0.60 0.70 0.75 242.00 20.0 14900
800 1000 630B 595 275.2 5.80 0.80 2.00 94.50 95.50 96.00 0.60 0.71 0.76 312.00 20.0 11900
900 1250 630C 595 309.6 5.80 0.80 2.00 94.50 95.50 96.00 0.60 0.71 0.76 332.00 20.0 12800
1000 1350 630D 595 344.1 5.80 0.80 2.00 94.50 95.50 96.00 0.60 0.71 0.76 372.00 20.0 14000
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz

6

kW cv 50 75 100 50 75 100 (kg)
2 PÓLOS
100 135 315L 3555 17.1 6.60 1.40 2.10 88.00 90.50 91.00 0.82 0.87 0.89 2.44 17.0 1200
112 150 315A 3555 19.2 6.60 1.40 2.10 88.50 90.60 91.20 0.82 0.87 0.89 2.50 17.0 1250
125 175 315A 3558 21.3 6.70 1.40 2.10 88.80 90.80 91.50 0.82 0.87 0.89 2.63 17.0 1300
140 200 315B 3558 23.8 6.70 1.40 2.10 89.00 90.80 91.60 0.82 0.87 0.89 2.76 18.0 1350
160 225 315B 3558 27.2 6.70 1.40 2.10 89.20 91.00 91.80 0.82 0.87 0.89 2.90 18.0 1400
180 250 315C 3560 30.5 6.70 1.40 2.10 89.20 91.00 92.00 0.82 0.87 0.89 3.38 18.0 1500
200 275 315C 3560 33.8 6.70 1.40 2.10 89.20 91.10 92.20 0.82 0.87 0.89 3.70 18.0 1650
225 300 315D 3562 37.6 6.80 1.40 2.10 89.40 91.20 92.40 0.83 0.88 0.90 4.03 18.0 1750
250 350 315D 3562 41.7 6.80 1.40 2.00 89.50 91.30 92.50 0.83 0.88 0.90 4.35 18.0 1850
280 370 315E 3565 46.5 6.80 1.40 2.00 89.80 91.40 92.80 0.83 0.88 0.90 4.54 19.0 1950
315 400 355B 3565 52.1 6.80 1.30 2.00 90.50 91.60 93.20 0.83 0.88 0.90 5.05 19.0 2200
355 450 355C 3565 58.6 6.80 1.30 2.00 91.00 92.00 93.50 0.84 0.89 0.90 5.53 20.0 2550
400 500 355C 3565 65.8 6.80 1.30 2.00 91.20 92.50 93.80 0.84 0.89 0.90 6.16 21.0 2650
450 600 355D 3566 73.8 6.80 1.30 2.00 91.80 92.80 94.00 0.84 0.89 0.90 6.79 21.0 2750
500 700 355E 3568 81.9 6.80 1.30 2.00 92.00 93.00 94.20 0.84 0.89 0.90 7.34 21.0 2850
560 750 400L 3568 90.4 6.60 1.10 2.00 92.20 93.50 94.50 0.84 0.90 0.91 11.00 20.0 3300
630 800 450L 3570 101.7 7.00 1.10 1.90 92.30 93.50 94.50 0.84 0.90 0.91 14.22 22.0 4500
710 900 450A 3570 114.2 7.00 1.10 1.90 92.50 93.70 94.80 0.84 0.90 0.91 15.13 22.0 4800
800 1000 450B 3570 128.4 7.00 1.10 1.90 92.60 93.90 95.00 0.84 0.90 0.91 16.48 22.0 5100
900 1250 450C 3570 144.2 7.00 1.10 1.90 92.80 94.00 95.20 0.85 0.90 0.91 17.39 22.0 5400
1000 1350 450D 3570 159.7 7.00 1.10 1.90 93.00 94.20 95.50 0.85 0.90 0.91 19.32 22.0 5700
1120 1500 450D 3570 178.3 7.00 1.10 1.80 93.20 94.50 95.80 0.85 0.90 0.91 22.52 22.0 5900
1250 1750 500L 3570 198.8 7.00 1.10 1.80 93.50 94.80 95.90 0.86 0.90 0.91 26.56 20.0 6400
1400 2000 500A 3570 222.4 7.00 1.00 1.80 93.80 95.00 96.00 0.86 0.90 0.91 29.75 20.0 7250
1600 2250 500B 3570 253.9 7.00 1.00 1.80 94.00 95.10 96.10 0.86 0.90 0.91 34.00 20.0 7800
1800 2500 560L 3570 282.6 7.00 1.00 1.80 94.00 95.20 96.10 0.87 0.91 0.92 36.36 20.0 9750
2000 2750 560A 3570 313.6 7.00 1.00 1.80 94.10 95.20 96.20 0.87 0.91 0.92 40.40 20.0 9900
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
4 PÓLOS
100 135 315L 1780 18.3 6.20 1.30 2.10 91.60 92.00 92.40 0.72 0.78 0.82 2.70 21.0 1160
112 150 315L 1780 20.4 6.20 1.30 2.10 92.00 92.50 92.80 0.72 0.78 0.82 2.90 21.0 1190
125 175 315L 1780 22.7 6.30 1.30 2.10 92.40 92.90 93.20 0.72 0.78 0.82 3.15 21.0 1230
140 200 315A 1780 25.0 6.30 1.30 2.10 92.80 93.20 93.50 0.73 0.78 0.83 3.35 21.0 1260
160 225 315A 1780 28.5 6.30 1.30 2.10 93.00 93.50 93.80 0.73 0.79 0.83 3.45 22.0 1300
180 250 315A 1781 32.0 6.30 1.30 2.10 93.40 93.70 94.20 0.74 0.79 0.83 3.95 22.0 1330
200 275 315B 1781 35.0 6.30 1.20 2.10 93.60 94.00 94.40 0.74 0.79 0.84 4.15 22.0 1370
225 300 315B 1781 39.3 6.30 1.20 2.10 93.80 94.20 94.70 0.75 0.80 0.84 4.50 22.0 1420
250 350 315C 1781 43.6 6.30 1.20 2.00 94.00 94.40 94.80 0.75 0.80 0.84 4.90 22.0 1650
280 370 315C 1781 48.1 6.30 1.10 2.00 94.00 94.60 95.00 0.75 0.80 0.85 5.40 22.0 1750
315 400 315D 1782 54.0 6.40 1.10 2.00 94.20 94.80 95.20 0.76 0.80 0.85 5.80 23.0 1850
355 450 315E 1782 60.7 6.40 1.10 2.00 94.40 95.00 95.50 0.76 0.81 0.85 6.40 23.0 1950
400 500 315E 1784 68.4 6.40 1.10 2.00 94.50 95.00 95.50 0.78 0.81 0.85 6.80 23.0 2050
450 600 355C 1784 76.7 6.40 1.00 1.90 94.60 95.20 95.80 0.78 0.81 0.85 9.78 20.0 2400
500 700 355D 1785 85.1 6.40 1.00 1.90 94.80 95.40 95.90 0.76 0.81 0.85 10.71 20.0 2600
560 750 355E 1785 94.1 6.40 1.00 1.90 95.00 95.80 96.00 0.79 0.82 0.86 11.64 20.0 2800
630 800 400A 1788 105.6 6.50 1.00 1.90 95.30 96.00 96.30 0.81 0.83 0.86 13.00 20.0 3200
710 900 400A 1788 119.0 6.50 1.00 1.90 95.30 96.00 96.30 0.81 0.83 0.86 13.80 20.0 3300
800 1000 400B 1790 134.1 6.60 1.00 1.80 95.30 96.00 96.30 0.81 0.83 0.86 15.17 20.0 3650
900 1250 400D 1790 150.7 6.60 1.00 1.80 95.40 96.10 96.40 0.81 0.83 0.86 17.00 20.0 4000
1000 1350 450B 1790 167.2 6.60 0.90 1.80 95.50 96.20 96.50 0.81 0.83 0.86 20.10 20.0 4800
1120 1500 450C 1790 187.1 6.60 0.90 1.80 95.60 96.30 96.60 0.81 0.83 0.86 23.20 20.0 5100
1250 1750 450D 1790 208.6 6.60 0.90 1.80 95.70 96.40 96.70 0.81 0.83 0.86 23.20 20.0 5350
1400 2000 450D 1790 230.7 6.60 0.80 1.80 95.70 96.40 96.80 0.81 0.84 0.87 25.70 20.0 5750
1600 2250 500A 1790 263.7 6.70 0.80 1.80 95.70 96.50 96.80 0.81 0.84 0.87 43.10 20.0 6350
1800 2500 500B 1790 296.6 6.80 0.80 1.80 95.80 96.50 96.80 0.82 0.85 0.87 49.10 20.0 7050
2000 2750 500C 1790 329.6 6.80 0.80 1.80 95.80 96.60 96.80 0.82 0.85 0.87 55.60 20.0 7750
2250 3000 560L 1790 366.2 6.80 0.80 1.80 95.80 96.60 96.90 0.83 0.86 0.88 82.00 20.0 9300
2500 3500 560B 1790 408.2 6.80 0.80 1.80 95.50 96.30 96.60 0.83 0.85 0.88 109.20 20.0 10500
2800 3700 630B 1790 457.1 7.00 0.80 1.80 95.50 96.30 96.60 0.83 0.85 0.88 200.00 21.0 10500
3150 4000 630C 1790 514.3 7.00 0.80 1.80 95.50 96.30 96.60 0.83 0.85 0.88 240.00 21.0 11500
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz

7

kW cv 50 75 100 50 75 100 (kg)
6 PÓLOS
100 135 315L 1180 18.3 5.60 1.30 2.00 91.30 92.10 92.50 0.68 0.76 0.82 4.80 20.0 1200
112 150 315L 1180 20.5 5.60 1.30 2.00 91.50 92.30 92.60 0.68 0.76 0.82 5.20 20.0 1250
125 175 315A 1180 22.8 5.70 1.30 2.00 91.60 92.50 92.80 0.68 0.72 0.82 5.90 20.0 1300
140 200 315A 1180 25.5 5.70 1.30 2.00 91.80 92.60 93.00 0.69 0.76 0.82 6.60 20.0 1350
160 225 315B 1180 29.1 5.80 1.30 2.00 92.00 92.80 93.20 0.69 0.77 0.82 6.70 20.0 1400
180 250 315C 1180 32.2 5.80 1.30 2.00 92.30 93.00 93.50 0.70 0.77 0.83 7.90 20.0 1550
200 275 315C 1180 35.7 5.80 1.30 2.00 92.60 93.10 93.80 0.71 0.78 0.83 8.50 20.0 1630
225 300 315D 1180 40.0 5.90 1.30 2.00 92.80 93.40 94.00 0.72 0.78 0.83 9.40 20.0 1700
250 350 315E 1181 44.3 5.90 1.30 2.00 93.00 93.50 94.30 0.72 0.78 0.83 10.40 20.0 1800
280 370 315E 1181 49.0 5.90 1.30 2.00 93.00 93.80 94.50 0.73 0.79 0.84 11.20 20.0 1900
315 400 355C 1181 54.9 6.00 1.20 2.00 93.20 94.00 94.80 0.73 0.79 0.84 11.40 20.0 2500
355 450 355D 1182 61.7 6.00 1.20 2.00 93.40 94.20 95.00 0.73 0.79 0.84 12.70 20.0 2650
400 500 355E 1182 69.4 6.00 1.20 2.00 93.60 94.40 95.20 0.73 0.79 0.84 14.50 20.0 2800
450 600 355E 1182 78.0 6.00 1.20 2.00 93.70 94.50 95.30 0.74 0.80 0.84 16.00 20.0 2950
500 700 400A 1185 86.5 6.00 1.20 2.00 93.80 94.60 95.50 0.74 0.80 0.84 17.40 21.0 3350
560 750 400B 1186 96.7 6.00 1.20 2.00 94.00 94.80 95.70 0.74 0.80 0.84 19.50 21.0 3550
630 800 400C 1185 107.4 6.10 1.10 1.90 94.00 94.90 95.80 0.74 0.81 0.85 21.30 21.0 3750
710 900 400D 1185 120.8 6.10 1.10 1.90 94.10 95.00 96.00 0.74 0.81 0.85 23.90 21.0 3900
800 1000 450C 1187 134.3 6.10 1.00 1.90 94.20 95.10 96.10 0.75 0.82 0.86 40.60 21.0 4650
900 1250 450D 1187 151.0 6.10 1.00 1.90 94.40 95.20 96.20 0.76 0.82 0.86 45.30 22.0 5150
1000 1350 450D 1187 167.6 6.10 1.00 1.90 94.50 95.30 96.30 0.76 0.83 0.86 49.20 21.0 5350
1120 1500 500L 1188 187.5 6.20 0.90 1.80 94.70 95.40 96.40 0.76 0.83 0.86 70.00 21.0 5550
1250 1750 500A 1188 209.0 6.20 0.90 1.80 94.80 95.50 96.50 0.77 0.83 0.86 90.50 21.0 5950
1400 2000 500B 1188 234.1 6.10 0.90 1.80 95.00 95.50 96.50 0.77 0.83 0.86 99.20 21.0 6900
1600 2250 560L 1190 264.2 6.20 0.80 1.80 95.00 95.60 96.60 0.78 0.84 0.87 115.00 20.0 7200
1800 2500 560A 1190 297.3 6.20 0.80 1.80 95.10 95.70 96.60 0.78 0.84 0.87 150.50 20.0 8450
2000 2750 560B 1190 330.6 6.20 0.80 1.80 95.20 95.80 96.50 0.78 0.84 0.87 163.30 20.0 9000
2250 3000 630B 1190 372.0 6.80 0.80 1.80 95.20 95.80 96.50 0.78 0.84 0.87 210.00 21.0 9800
8 PÓLOS
100 135 315L 886 19.3 5.20 1.20 2.00 91.30 92.00 92.30 0.66 0.74 0.78 6.30 20.0 1350
112 150 315A 886 21.5 5.20 1.20 2.00 91.50 92.10 92.50 0.66 0.74 0.78 6.44 20.0 1400
125 175 315B 886 23.6 5.30 1.20 2.00 91.70 92.30 93.00 0.67 0.74 0.79 7.08 20.0 1450
140 200 315C 887 26.4 5.30 1.20 2.00 91.90 92.50 93.20 0.67 0.75 0.79 8.60 20.0 1550
160 225 315C 887 30.1 5.30 1.20 2.00 92.00 92.60 93.50 0.67 0.75 0.79 10.40 20.0 1650
180 250 315D 888 33.3 5.40 1.20 2.00 92.20 92.80 93.70 0.67 0.76 0.80 10.80 20.0 1750
200 275 315E 888 37.0 5.40 1.20 2.00 92.30 92.90 93.90 0.68 0.76 0.80 11.22 20.0 1850
225 300 355L 889 41.0 5.40 1.10 2.00 92.50 93.00 94.10 0.68 0.76 0.81 14.40 20.0 2300
250 350 355A 889 45.4 5.50 1.10 2.00 92.60 93.20 94.30 0.70 0.76 0.81 16.33 20.0 2400
280 370 355B 890 50.2 5.50 1.10 2.00 92.80 93.30 94.50 0.70 0.78 0.82 18.25 20.0 2500
315 400 355C 890 56.3 5.60 1.10 2.00 93.00 93.50 94.70 0.70 0.78 0.82 20.90 20.0 2750
355 450 355C 890 62.6 5.60 1.00 2.00 93.10 93.70 94.80 0.70 0.79 0.83 21.25 20.0 3000
400 500 400L 890 70.5 5.60 1.00 2.00 93.20 93.80 94.90 0.70 0.79 0.83 32.92 20.0 3500
450 600 400A 891 79.2 5.60 0.90 1.90 93.40 93.90 95.00 0.71 0.79 0.83 36.30 20.0 3600
500 700 400B 891 87.8 5.60 0.90 1.90 93.50 94.00 95.20 0.71 0.79 0.83 39.00 20.0 3700
560 750 400C 891 98.3 5.60 0.90 1.90 93.60 94.30 95.30 0.72 0.80 0.83 42.50 20.0 3850
630 800 400C 891 109.0 5.60 0.90 1.90 93.80 94.40 95.50 0.72 0.80 0.84 47.30 20.0 4000
710 900 450A 891 122.5 5.70 0.90 1.90 94.00 94.60 95.80 0.72 0.80 0.84 61.94 20.0 5300
800 1000 450B 892 137.5 5.70 0.90 1.90 94.10 94.80 96.10 0.74 0.81 0.84 68.46 20.0 6050
900 1250 500L 892 152.8 5.80 0.90 1.90 94.20 95.00 96.20 0.75 0.81 0.85 103.00 21.0 6100
1000 1350 500A 892 169.7 5.80 0.90 1.90 94.40 95.10 96.20 0.75 0.81 0.85 112.90 21.0 6350
1120 1500 500B 893 189.7 5.80 0.90 1.90 94.60 95.20 96.40 0.76 0.81 0.85 125.30 21.0 7050
1250 1750 500C 893 211.5 5.80 0.90 1.90 94.70 95.30 96.50 0.76 0.81 0.85 131.57 21.0 7450
1400 2000 560A 893 235.1 5.80 0.80 1.80 94.50 95.10 96.10 0.75 0.81 0.86 210.00 21.0 8400
1600 2250 560B 893 268.7 5.80 0.80 1.80 94.50 95.10 96.10 0.75 0.81 0.86 250.23 21.0 9700
1800 2500 630A 893 301.3 6.30 0.80 1.80 94.60 95.30 96.40 0.75 0.81 0.86 290.00 21.0 10700

8

kW cv 50 75 100 50 75 100 (kg)
10 PÓLOS
125 175 355B 710 28.3 6.00 1.20 2.10 90.80 92.30 93.00 0.45 0.58 0.66 15.30 20.0 2300
140 200 355C 710 31.7 6.00 1.20 2.10 90.80 92.30 93.00 0.45 0.58 0.66 17.00 20.0 2500
160 225 355C 710 36.0 6.00 1.20 2.10 91.00 92.80 93.40 0.45 0.58 0.66 19.80 20.0 2650
180 250 355D 710 40.5 6.00 1.20 2.10 91.00 92.80 93.40 0.45 0.58 0.66 22.70 20.0 2850
200 275 355E 710 45.0 6.00 1.20 2.10 91.00 92.80 93.40 0.45 0.58 0.66 23.80 20.0 3000
225 300 400L 710 44.1 6.20 1.00 2.00 93.80 94.20 94.40 0.57 0.69 0.75 32.20 20.0 3600
250 350 400A 710 49.0 6.20 1.00 2.00 93.80 94.20 94.40 0.57 0.69 0.75 35.70 20.0 3900
280 370 400A 710 54.9 6.20 1.00 2.00 93.80 94.20 94.40 0.57 0.69 0.75 36.50 20.0 4000
315 400 450A 710 61.6 6.20 0.80 1.80 93.90 94.40 94.60 0.57 0.69 0.75 47.90 20.0 4750
355 450 450B 710 69.4 6.20 0.80 1.80 93.90 94.40 94.60 0.57 0.69 0.75 49.10 20.0 4850
400 500 450C 710 76.7 6.20 0.80 1.80 94.20 95.00 95.20 0.57 0.70 0.76 64.00 20.0 5300
450 600 450D 710 86.3 6.20 0.80 1.80 94.20 95.00 95.20 0.57 0.70 0.76 75.30 20.0 6050
500 700 450D 710 95.9 6.20 0.80 1.80 94.20 95.00 95.20 0.57 0.70 0.76 81.50 20.0 6100
560 750 500L 714 107.1 6.20 0.80 1.80 94.50 95.40 95.50 0.57 0.70 0.76 116.30 20.0 7800
630 800 500A 714 120.5 6.20 0.80 1.80 94.50 95.40 95.50 0.57 0.70 0.76 125.20 20.0 8400
710 900 500B 714 135.8 6.20 0.80 1.80 94.50 95.40 95.50 0.57 0.70 0.76 144.40 20.0 9500
800 1000 560L 714 152.2 6.20 0.80 1.80 94.70 95.50 96.00 0.58 0.70 0.76 223.00 20.0 11250
900 1250 560A 714 171.2 6.20 0.80 1.80 94.70 95.50 96.00 0.58 0.70 0.76 257.50 20.0 13000
1000 1350 630A 710 172.8 6.00 0.80 1.80 94.10 94.70 95.60 0.68 0.75 0.80 220.00 21.0 10300
1120 1500 630B 710 190.7 6.00 0.80 1.80 94.20 94.90 95.90 0.68 0.75 0.80 260.00 21.0 10800
1250 1750 630B 710 212.4 6.00 0.80 1.80 94.30 95.00 96.10 0.68 0.75 0.80 300.00 21.0 11200
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
12 PÓLOS
140 200 400L 594 29.0 5.90 0.90 2.00 91.00 92.00 93.00 0.55 0.67 0.72 27.50 20.0 3850
160 225 400B 594 33.0 5.90 0.90 2.00 91.00 92.40 93.40 0.55 0.67 0.72 30.50 20.0 3950
180 250 400C 594 37.1 5.90 0.90 2.00 92.00 94.60 93.60 0.55 0.67 0.72 33.50 20.0 4150
200 275 400D 594 41.2 5.90 0.90 2.00 92.00 94.60 93.60 0.55 0.67 0.72 36.50 20.0 4250
225 300 450B 594 45.8 5.80 0.80 2.00 93.50 94.40 94.60 0.56 0.69 0.72 38.00 20.0 5000
250 350 450B 594 50.9 5.80 0.80 2.00 93.50 94.40 94.60 0.56 0.69 0.72 45.00 20.0 5500
280 370 450C 594 56.9 5.80 0.80 2.00 93.60 94.50 94.80 0.56 0.69 0.72 52.00 20.0 5700
315 400 450D 594 64.0 5.80 0.80 2.00 94.00 94.70 94.90 0.56 0.69 0.72 60.00 20.0 5900
355 450 450E 594 72.0 5.80 0.80 2.00 94.20 94.90 95.10 0.56 0.69 0.72 68.00 20.0 6300
400 500 500B 594 77.8 5.80 0.80 2.00 94.00 95.00 95.10 0.60 0.70 0.75 91.00 21.0 7900
450 600 500C 594 87.6 5.80 0.80 2.00 94.10 95.00 95.10 0.60 0.70 0.75 103.00 21.0 8400
500 700 500D 594 97.1 5.80 0.80 2.00 94.10 95.10 95.30 0.60 0.70 0.75 115.00 21.0 9000
560 750 560B 594 109.0 5.80 0.80 2.00 94.20 95.00 95.10 0.60 0.70 0.75 200.00 20.0 13200
630 800 560C 594 122.3 5.80 0.80 2.00 94.30 95.10 95.30 0.60 0.70 0.75 221.00 20.0 14000
710 900 560D 594 137.6 5.80 0.80 2.00 94.30 95.30 95.50 0.60 0.70 0.75 242.00 20.0 14900
800 1000 630B 595 152.2 5.80 0.80 2.00 94.50 95.50 96.00 0.60 0.71 0.76 312.00 20.0 11900
900 1250 630C 595 171.2 5.80 0.80 2.00 94.50 95.50 96.00 0.60 0.71 0.76 332.00 20.0 12800
1000 1350 630D 595 190.2 5.80 0.80 2.00 94.50 95.50 96.00 0.60 0.71 0.76 372.00 20.0 14000
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz

9

kW cv 50 75 100 50 75 100 (kg)
2 PÓLOS
100 135 315A 3560 10.9 6.60 1.40 2.10 87.80 90.30 90.80 0.81 0.86 0.88 1.69 16.0 1300
112 150 315B 3560 12.2 6.60 1.40 2.10 88.30 90.40 91.00 0.81 0.86 0.88 1.81 16.0 1350
125 175 315B 3562 13.6 6.60 1.40 2.10 88.60 90.60 91.30 0.81 0.86 0.88 1.93 16.0 1450
140 200 315C 3562 15.1 6.60 1.40 2.10 88.80 90.60 91.40 0.82 0.87 0.89 2.11 17.0 1450
160 225 315C 3562 17.2 6.70 1.40 2.10 89.00 90.80 91.60 0.82 0.87 0.89 2.29 17.0 1500
180 250 315D 3564 19.3 6.70 1.40 2.10 89.00 90.80 91.80 0.82 0.87 0.89 2.53 17.0 1550
200 275 315D 3564 21.4 6.70 1.40 2.10 89.00 90.90 92.00 0.82 0.87 0.89 2.71 17.0 1600
225 300 315E 3564 24.0 6.70 1.40 2.10 89.20 91.00 92.20 0.83 0.88 0.89 3.01 17.0 1650
250 350 315E 3564 26.6 6.70 1.40 2.10 89.30 91.10 92.30 0.83 0.88 0.89 3.62 17.0 1750
280 370 355C 3565 29.4 6.80 1.30 2.00 89.60 91.20 92.60 0.83 0.88 0.90 4.99 19.0 2300
315 400 355D 3565 32.9 6.80 1.30 2.00 90.30 91.40 93.00 0.83 0.88 0.90 5.47 19.0 2400
355 450 355D 3565 37.0 6.80 1.30 2.00 90.80 91.80 93.30 0.84 0.89 0.90 6.10 20.0 2550
400 500 355D 3565 41.5 6.80 1.30 2.00 91.00 92.30 93.60 0.84 0.89 0.90 6.99 21.0 2700
450 600 355E 3566 46.6 6.80 1.30 2.00 91.60 92.60 93.80 0.84 0.89 0.90 7.62 21.0 2850
500 700 400L 3568 51.7 6.90 1.30 2.00 91.80 92.80 94.00 0.84 0.89 0.90 10.27 21.0 3300
560 750 450L 3568 57.1 7.00 1.10 1.90 92.00 93.30 94.30 0.84 0.90 0.91 13.38 22.0 3700
630 800 450A 3568 64.2 7.00 1.10 1.90 92.00 93.30 94.30 0.84 0.90 0.91 14.70 22.0 4100
710 900 450B 3569 72.1 7.00 1.10 1.90 92.30 93.50 94.60 0.84 0.90 0.91 16.13 22.0 4400
800 1000 450C 3569 81.1 7.00 1.10 1.90 92.50 93.70 94.80 0.84 0.90 0.91 17.69 22.0 4500
900 1250 450D 3570 91.1 7.00 1.10 1.90 92.60 93.80 95.00 0.84 0.90 0.91 18.26 22.0 5100
1000 1350 450D 3570 100.9 7.00 1.10 1.90 92.80 94.00 95.30 0.84 0.90 0.91 20.30 22.0 5850
1120 1500 500L 3570 112.6 7.00 1.00 1.80 93.00 94.30 95.60 0.86 0.90 0.91 25.89 20.0 6200
1250 1750 500A 3570 125.6 7.00 1.00 1.80 93.30 94.60 95.70 0.86 0.90 0.91 27.89 20.0 6700
1400 2000 500B 3570 140.5 7.00 1.00 1.80 93.60 94.80 95.80 0.86 0.90 0.91 31.23 20.0 7600
1600 2250 560L 3570 160.4 7.10 1.00 1.80 93.80 94.90 95.90 0.86 0.90 0.91 35.73 20.0 8200
1800 2500 560A 3570 178.5 7.10 1.00 1.80 93.80 95.00 95.90 0.87 0.91 0.92 38.18 20.0 10250
2000 2750 560B 3570 198.1 7.10 1.00 1.80 93.90 95.00 96.00 0.87 0.91 0.92 42.42 20.0 10350
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
4 PÓLOS
100 135 315A 1779 11.6 6.40 1.30 2.10 91.40 91.80 92.00 0.72 0.78 0.82 2.70 17.0 1190
112 150 315A 1779 13.0 6.40 1.30 2.10 91.80 92.00 92.10 0.72 0.78 0.82 3.00 17.0 1230
125 175 315A 1779 14.3 6.40 1.30 2.10 92.20 92.70 93.20 0.72 0.78 0.82 3.25 17.0 1260
140 200 315B 1779 15.8 6.40 1.30 2.10 92.50 93.00 93.50 0.73 0.78 0.83 3.55 17.0 1300
160 225 315B 1779 18.0 6.40 1.30 2.10 92.60 93.30 93.70 0.73 0.79 0.83 3.95 17.0 1330
180 250 315B 1780 20.2 6.40 1.30 2.10 92.70 93.50 93.80 0.74 0.79 0.83 4.15 18.0 1370
200 275 315C 1780 22.2 6.40 1.20 2.10 92.80 93.80 94.00 0.74 0.79 0.84 4.50 18.0 1420
225 300 315C 1780 24.9 6.40 1.20 2.10 93.00 94.00 94.10 0.75 0.80 0.84 4.90 18.0 1580
250 350 315D 1780 27.6 6.40 1.20 2.00 93.20 94.10 94.20 0.75 0.80 0.84 5.40 18.0 1670
280 370 315D 1780 30.9 6.40 1.10 2.00 93.30 94.20 94.30 0.75 0.80 0.84 5.90 18.0 1760
315 400 315E 1780 34.7 6.40 1.10 2.00 93.40 94.30 94.50 0.75 0.80 0.84 6.50 18.0 1850
355 450 315E 1782 38.3 6.40 1.10 1.90 94.20 94.80 95.30 0.76 0.81 0.85 6.90 23.0 1950
400 500 355C 1784 43.2 6.40 1.00 1.90 94.30 94.80 95.30 0.78 0.81 0.85 9.33 20.0 2450
450 600 355D 1784 48.4 6.40 1.00 1.90 94.40 95.00 95.60 0.78 0.81 0.85 10.41 20.0 2600
500 700 355E 1784 53.8 6.40 1.00 1.90 94.60 95.20 95.70 0.76 0.81 0.85 11.52 20.0 2750
560 750 400A 1786 59.3 6.50 1.00 1.90 95.00 95.80 96.00 0.80 0.83 0.86 13.00 20.0 3000
630 800 400A 1786 66.8 6.50 1.00 1.90 95.00 95.80 96.00 0.80 0.83 0.86 13.90 20.0 3100
710 900 400B 1786 75.2 6.60 0.90 1.80 95.10 95.80 96.10 0.81 0.83 0.86 15.20 20.0 3450
800 1000 400D 1789 84.6 6.60 0.90 1.80 95.20 95.90 96.20 0.81 0.83 0.86 17.10 20.0 3750
900 1250 450B 1790 95.1 6.60 0.90 1.80 95.30 96.00 96.30 0.81 0.83 0.86 19.30 20.0 4750
1000 1350 450C 1790 105.4 6.60 0.90 1.80 95.40 96.00 96.50 0.81 0.83 0.86 23.20 20.0 5050
1120 1500 450D 1790 118.1 6.60 0.90 1.80 95.40 96.10 96.50 0.81 0.83 0.86 23.30 20.0 5300
1250 1750 450D 1790 131.8 6.60 0.90 1.80 95.50 96.20 96.50 0.81 0.83 0.86 25.70 20.0 5700
1400 2000 500A 1790 145.7 6.70 0.80 1.80 95.50 96.20 96.60 0.81 0.84 0.87 43.10 21.0 6350
1600 2250 500B 1790 166.5 6.80 0.80 1.80 95.50 96.30 96.60 0.81 0.84 0.87 49.10 21.0 7050
1800 2500 500C 1790 187.4 6.80 0.80 1.80 95.60 96.30 96.60 0.82 0.85 0.87 55.40 21.0 7750
2000 2750 560L 1790 208.2 6.80 0.80 1.80 95.60 96.40 96.60 0.82 0.85 0.87 82.00 21.0 9200
2250 3000 560A 1790 231.3 6.80 0.80 1.80 95.60 96.40 96.70 0.83 0.86 0.88 108.50 21.0 10300
2500 3500 630A 1790 257.0 7.00 0.80 1.80 95.50 96.30 96.70 0.87 0.86 0.88 190.00 21.0 10200
2800 3700 630B 1790 287.8 7.00 0.80 1.80 95.50 96.30 96.70 0.83 0.86 0.88 240.00 21.0 11300
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz

10

kW cv 50 75 100 50 75 100 (kg)
6 PÓLOS
140 200 315A 1180 16.3 5.90 1.30 2.00 91.60 92.40 92.80 0.68 0.75 0.81 8.30 20.0 1450
160 225 315B 1180 18.6 5.90 1.30 2.00 91.80 92.60 93.00 0.68 0.76 0.81 9.40 20.0 1580
180 250 315C 1180 20.6 5.90 1.30 2.00 92.10 92.80 93.30 0.69 0.76 0.82 10.20 20.0 1760
200 275 315D 1180 22.8 5.90 1.30 2.00 92.40 92.90 93.60 0.70 0.77 0.82 11.10 20.0 1900
225 300 355B 1180 25.6 5.90 1.30 2.00 92.60 93.20 93.80 0.71 0.77 0.82 11.12 20.0 2150
250 350 355B 1181 28.3 6.00 1.30 2.00 92.80 93.30 94.10 0.71 0.77 0.82 12.29 20.0 2250
280 370 355C 1181 31.3 5.90 1.30 2.00 92.80 93.60 94.30 0.72 0.78 0.83 13.20 20.0 2450
315 400 355D 1181 35.1 6.00 1.20 2.00 93.00 93.80 94.60 0.72 0.78 0.83 14.88 20.0 2550
355 450 355E 1182 39.5 6.00 1.20 2.00 93.20 94.00 94.80 0.72 0.78 0.83 15.89 20.0 2650
400 500 355E 1182 44.4 6.00 1.20 2.00 93.40 94.20 95.00 0.72 0.78 0.83 16.00 20.0 2750
450 600 400A 1185 49.9 6.10 1.00 1.90 93.50 94.30 95.10 0.73 0.79 0.83 17.40 20.0 3100
500 700 400B 1185 55.3 6.10 1.00 1.90 93.60 94.40 95.30 0.73 0.79 0.83 19.50 20.0 3200
560 750 400D 1185 61.8 6.10 1.00 1.90 93.80 94.60 95.50 0.73 0.79 0.83 21.30 20.0 3450
630 800 400E 1185 68.6 6.10 1.00 1.90 93.80 94.70 95.60 0.73 0.80 0.84 23.90 20.0 3650
710 900 450D 1185 77.2 6.10 1.00 1.90 93.90 94.80 95.80 0.73 0.80 0.84 36.88 20.0 4650
800 1000 450D 1185 86.9 6.10 1.00 1.90 94.00 94.90 95.90 0.73 0.80 0.84 41.56 20.0 4900
900 1250 450D 1185 96.5 6.10 1.00 1.90 94.20 95.00 96.00 0.75 0.82 0.85 48.00 20.0 5350
1000 1350 500A 1188 107.1 6.20 0.90 1.80 94.30 95.10 96.10 0.75 0.82 0.85 56.76 20.0 5850
1120 1500 500B 1188 119.8 6.20 0.90 1.80 94.50 95.20 96.20 0.75 0.82 0.85 63.58 20.0 6200
1250 1750 500C 1188 133.6 6.20 0.90 1.80 94.60 95.30 96.30 0.76 0.82 0.85 99.00 20.0 6900
1400 2000 560A 1190 149.6 6.20 0.80 1.80 94.80 95.30 96.30 0.76 0.82 0.85 81.44 21.0 7600
1600 2250 560B 1190 168.8 6.20 0.80 1.80 94.80 95.40 96.40 0.77 0.83 0.86 93.08 21.0 8850
1800 2500 560C 1190 189.9 6.20 0.80 1.80 94.90 95.50 96.40 0.77 0.83 0.86 104.71 21.0 9450
2000 2750 630A 1190 211.0 6.60 0.80 1.80 94.90 95.50 96.40 0.77 0.83 0.86 200.00 21.0 9300
2250 3000 630B 1190 237.4 6.60 0.80 1.80 94.90 95.50 96.40 0.77 0.83 0.86 220.00 21.0 10500
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
8 PÓLOS
100 135 355L 886 12.3 5.40 1.20 2.00 91.30 92.00 92.30 0.65 0.73 0.77 10.09 20.0 1600
112 150 355A 886 13.8 5.40 1.20 2.00 91.50 92.10 92.50 0.65 0.73 0.77 11.46 20.0 1700
125 175 355A 886 15.1 5.40 1.20 2.00 91.70 92.30 93.00 0.66 0.73 0.78 12.83 20.0 1800
140 200 355B 887 16.8 5.40 1.20 2.00 91.90 92.50 93.20 0.66 0.74 0.78 13.66 20.0 2050
160 225 355B 887 19.2 5.40 1.20 2.00 92.00 92.60 93.50 0.66 0.74 0.78 14.76 20.0 2150
180 250 355C 888 21.3 5.40 1.20 2.00 92.20 92.80 93.70 0.66 0.75 0.79 15.58 20.0 2300
200 275 355C 888 23.6 5.50 1.20 2.00 92.30 92.90 93.90 0.67 0.75 0.79 17.50 20.0 2400
225 300 355D 889 26.1 5.50 1.10 2.00 92.50 93.00 94.10 0.67 0.75 0.80 19.70 20.0 2500
250 350 355D 889 29.0 5.50 1.10 2.00 92.60 93.20 94.30 0.69 0.75 0.80 20.00 20.0 2650
280 370 355E 890 32.0 5.50 1.10 2.00 92.80 93.30 94.50 0.69 0.77 0.81 21.00 20.0 2800
315 400 355E 890 35.9 5.50 1.10 2.00 93.00 93.50 94.70 0.69 0.77 0.81 22.00 20.0 2900
355 450 400L 890 39.9 5.60 1.00 2.00 93.10 93.70 94.80 0.69 0.78 0.82 32.90 20.0 3400
400 500 400A 891 45.0 5.60 1.00 2.00 93.20 93.80 94.90 0.70 0.78 0.82 36.30 20.0 3500
450 600 400B 891 50.5 5.60 1.00 2.00 93.40 93.90 95.00 0.70 0.78 0.82 39.00 20.0 3600
500 700 400B 891 56.0 5.60 1.00 2.00 93.50 94.00 95.20 0.70 0.78 0.82 42.50 20.0 3750
560 750 400C 891 62.7 5.60 1.00 2.00 93.60 94.30 95.30 0.71 0.79 0.82 47.00 20.0 3900
630 800 450L 891 70.4 5.70 0.90 1.90 93.80 94.40 95.50 0.71 0.79 0.82 61.90 20.0 5100
710 900 450B 891 78.1 5.70 0.90 1.90 94.00 94.60 95.80 0.72 0.80 0.83 69.00 20.0 5600
800 1000 500L 892 87.7 5.80 0.90 1.90 94.10 94.80 96.10 0.73 0.80 0.83 103.00 20.0 6050
900 1250 500A 892 97.4 5.80 0.90 1.90 94.20 95.00 96.20 0.74 0.80 0.84 112.90 20.0 6250
1000 1350 500A 892 108.3 5.80 0.90 1.90 94.40 95.10 96.20 0.74 0.80 0.84 126.08 20.0 6600
1120 1500 500B 893 121.0 5.80 0.90 1.90 94.60 95.20 96.40 0.75 0.80 0.84 131.60 20.0 7000
1250 1750 560A 893 135.0 5.80 0.90 1.80 94.60 95.20 96.40 0.75 0.80 0.84 210.00 20.0 8400
1400 2000 560B 893 151.2 5.80 0.90 1.80 94.60 95.20 96.40 0.75 0.80 0.84 250.00 20.0 9650
1600 2250 630C 893 172.7 6.30 0.80 1.80 94.60 95.30 96.50 0.75 0.80 0.84 270.00 20.0 11000
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz

11

kW cv 50 75 100 50 75 100 (kg)
10 PÓLOS
140 200 355C 710 20.1 6.00 1.20 2.10 90.00 91.80 92.10 0.45 0.58 0.66 18.10 20.0 2400
160 225 355D 710 23.0 6.00 1.20 2.10 90.00 91.80 92.10 0.45 0.58 0.66 18.95 20.0 2500
180 250 355D 710 25.8 6.00 1.20 2.10 90.20 92.00 92.30 0.45 0.58 0.66 21.80 20.0 2750
200 275 355E 710 28.7 6.00 1.20 2.10 90.20 92.00 92.30 0.45 0.58 0.66 23.80 20.0 3000
225 300 400L 710 29.9 5.90 0.90 2.00 92.80 93.80 94.00 0.54 0.65 0.70 32.20 20.0 3900
250 350 400A 710 33.2 5.90 0.90 2.00 92.80 93.80 94.00 0.54 0.65 0.70 35.60 20.0 4150
280 370 400A 710 37.2 5.90 0.90 2.00 92.80 93.80 94.00 0.54 0.65 0.70 36.50 20.0 4250
315 400 450A 710 41.2 5.90 0.80 1.90 92.90 94.00 94.20 0.55 0.66 0.71 48.90 20.0 4850
355 450 450B 710 44.9 5.90 0.80 1.90 93.80 94.60 94.80 0.56 0.67 0.73 64.30 20.0 5300
400 500 450C 710 50.6 5.90 0.80 1.90 93.80 94.60 94.80 0.56 0.67 0.73 75.50 20.0 6050
450 600 450D 710 55.4 5.90 0.80 1.90 93.80 94.60 94.80 0.57 0.69 0.75 81.50 20.0 6100
500 700 450D 710 61.5 5.90 0.80 1.90 93.80 94.60 94.80 0.57 0.69 0.75 88.40 20.0 6650
560 750 500L 714 67.7 5.80 0.80 1.80 94.20 95.00 95.20 0.58 0.70 0.76 121.90 20.0 8200
630 800 500A 714 76.2 5.80 0.80 1.80 94.20 95.00 95.20 0.58 0.70 0.76 137.80 20.0 9250
710 900 560L 714 85.1 5.80 0.80 1.80 94.70 95.50 96.00 0.58 0.70 0.76 222.60 20.0 11250
800 1000 560A 714 95.9 5.80 0.80 1.80 94.70 95.50 96.00 0.58 0.70 0.76 268.20 20.0 13500
900 1250 560B 714 107.9 5.80 0.80 1.80 94.70 95.50 96.00 0.58 0.70 0.76 302.40 20.0 15200
1000 1350 630A 710 116.7 6.00 0.80 1.80 94.20 95.00 96.10 0.68 0.75 0.78 260.00 20.0 10700
1120 1500 630B 710 130.7 6.00 0.80 1.80 94.20 95.00 96.10 0.68 0.75 0.78 290.00 20.0 11500
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
12 PÓLOS
140 200 400L 594 18.3 5.90 0.90 2.00 91.00 92.00 93.00 0.55 0.67 0.72 27.50 20.0 3850
160 225 400B 594 20.8 5.90 0.90 2.00 91.00 92.40 93.40 0.55 0.67 0.72 30.50 20.0 3950
180 250 400C 594 23.4 5.90 0.90 2.00 92.00 94.60 93.60 0.55 0.67 0.72 33.50 20.0 4150
200 275 400D 594 26.0 5.90 0.90 2.00 92.00 94.60 93.60 0.55 0.67 0.72 36.50 20.0 4250
225 300 450B 594 28.9 5.80 0.80 2.00 93.50 94.40 94.60 0.56 0.69 0.72 38.00 20.0 5000
250 350 450B 594 32.1 5.80 0.80 2.00 93.50 94.40 94.60 0.56 0.69 0.72 45.00 20.0 5500
280 370 450C 594 35.9 5.80 0.80 2.00 93.60 94.50 94.80 0.56 0.69 0.72 52.00 20.0 5700
315 400 450D 594 40.3 5.80 0.80 2.00 94.00 94.70 94.90 0.56 0.69 0.72 60.00 20.0 5900
355 450 450E 594 45.4 5.80 0.80 2.00 94.20 94.90 95.10 0.56 0.69 0.72 68.00 20.0 6300
400 500 500B 594 49.1 5.80 0.80 2.00 94.00 95.00 95.10 0.60 0.70 0.75 91.00 21.0 7900
450 600 500C 594 55.2 5.80 0.80 2.00 94.10 95.00 95.10 0.60 0.70 0.75 103.00 21.0 8400
500 700 500D 594 61.2 5.80 0.80 2.00 94.10 95.10 95.30 0.60 0.70 0.75 115.00 21.0 9000
560 750 560B 594 68.7 5.80 0.80 2.00 94.20 95.00 95.10 0.60 0.70 0.75 200.00 20.0 13200
630 800 560C 594 77.1 5.80 0.80 2.00 94.30 95.10 95.30 0.60 0.70 0.75 221.00 20.0 14000
710 900 560D 594 86.7 5.80 0.80 2.00 94.30 95.30 95.50 0.60 0.70 0.75 242.00 20.0 14900
800 1000 630B 595 95.9 5.80 0.80 2.00 94.50 95.50 96.00 0.60 0.71 0.76 312.00 20.0 11900
900 1250 630C 595 107.9 5.80 0.80 2.00 94.50 95.50 96.00 0.60 0.71 0.76 332.00 20.0 12800
1000 1350 630D 595 119.9 5.80 0.80 2.00 94.50 95.50 96.00 0.60 0.71 0.76 372.00 20.0 14000
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz

12
LINHA HGF
Grau de Proteção: IP54/55 Refrigeração: TFVE
Mancais de Rolamento Tensão até 6600V
- Segunda ponta de eixo opcional;

- Mancais dimensionados para acoplamento direto;
- Dimensões não normalizadas pela Norma NBR5432, sujeitas a alterações sem aviso prévio.
1) Como o motor tem três furos de fixação no pé traseiro, existem três dimensões “B” por carcaça.
2) Como o motor tem dois furos de fixação no pé traseiro, existem duas dimensões “B” por carcaça.

13
LINHA HGF
Grau de Proteção: IP54/55 Refrigeração: TFVE
Mancais de Deslizamento Tensão até 6600V
- Segunda ponta de eixo opcional;

- Mancais dimensionados para acoplamento direto;
- Dimensões não normalizadas pela Norma NBR5432, sujeitas a alterações sem aviso prévio.
1) Como o motor tem três furos de fixação no pé traseiro, existem três dimensões “B” por carcaça.
2) Como o motor tem dois furos de fixação no pé traseiro, existem duas dimensões “B” por carcaça.

14
TABELA DE ROLAMENTOS
FORMA CONSTRUTIVA B3
1. Carcaça 315 e 355 II Pólos, mancais lubrificados com graxa "POLIREX EM".
2. (*)Carcaça 400 (II Pólos/60 Hz), mancais lubrificados com óleo ISO VG46.
(**)Carcaça 400 (II Pólos/50 Hz), mancais lubrificados com graxa "POLIREX EM".
3. Carcaça 450, 500 e 560 II Pólos, consultar a Weg Máquinas.
4. Para acoplamento por polias e correias, eixo de aço AISI 4140 e rolamentos de rolos nas carcaças 315, 355 e 400 no mancal
dianteiro.
5. Mancal dianteiro e traseiro fixos para carcaças 315 a 500 com rolamentos de rolos.
6. Carcaça 450 e acima com mancal traseiro eletricamente isolado.
7. Motores acionadas por inversor de freqüência, com mancal traseiro eletricamente isolado e escova de aterramento no eixo, no
mancal dianteiro.
8. (***) Motores com mancais de bucha.
9. Mancais sujeitos a alterações conforme necessidade da engenharia.
OBS.: Detetores de temperatura tipo PT100 - 1 por mancal.

15
CONSULTA DE MOTORES DE CORRENTE ALTERNADA
DE (empresa/pessoa): ................................................................................. Fax: ...............................................
PARA (empresa/pessoa): ............................................................................ Fax: ...............................................

Cliente/Projeto: ............................................................................................ Fone: .............................................
Pessoa Contato: .......................................................................................... Fax: ...............................................
CARACTERÍSTICAS PRINCIPAIS (preenchimento obrigatório):
Tipo de Rotor: ( ) Gaiola
( ) Anéis
Número de Pólos: .................................................. Freqüência: ............................................................
Potência: ................................................................ Grau de Proteção: ...................................................
Tensão: ..................................................................
CARACTERÍSTICAS ADICIONAIS (caso não forem informadas serão assumidas aquelas entre parênteses):
Modelo: ..........................................(melhor opção) Regime de Serviço: ...........................................(S1)

Refrigeração: .................................(melhor opção) Partidas/hora: ...............................................(IEC34)
Fator de Serviço: ............................................(1,0) E.D.: ..............................................................(100%)
Forma Construtiva: .......................................(B3D) Partida: .......................................................(a vazio)
Classe de Isolamento: .......................................(F) Método de Partida: .................................(100% Um)
Elevação Temperatura: ........(105K para FS=1,00) Acoplamento: ................................................(direto)
Temp. Amb. Máxima: ....................................(40C) Pintura: ........................................................(normal)
Altitude: .....................................................(1000m) Área Classificada: .......................................(não há)
Sentido de Rotação: .................................(horário) Norma: .........................................................(IEC34)
Nota: Motores aplicados com conversores de freqüência deve ser indicado a faixa de rotação, o tipo de carga
(perfil de conjugado) e se o conversor será utilizado somente em funcionamento ou em funcionamento e
partida.
CARACTERÍSTICAS DA CARGA:
Tipo de Máquina: ................................................... Inércia (J = kgm2): ...................................................
Potência Consumida: ............................................ Rotação (rpm):..........................................................
Curva anexa (sim / não): .......................................
ACESSÓRIOS:
Resistência de aquecimento: .......................Volts
Detetores de Temperatura nos Enrolamentos tipo: ....................( .............por fase)
Detetores de Temperatura nos Mancais tipo: .............................( .............por mancal)
OBSERVAÇÕES:

16
INTERCAMBIABILIDADE ENTRE MOTORES COM PÉS
INTERCAMBIABILIDADE ENTRE MOTORES COM FLANGE
Distância entre furos de pés (vista frontal)......A= Diâmetro da ponta de eixo..............................D=

Distância entre furos de pés (vista lateral)......B= Comprimento da ponta de eixo.......................E=
Distância entre furos e encosta do eixo..........C= Altura da ponta de eixo...................................H=
ACOPLAMENTO POR POLIAS E CORREIAS

1) 2) 3)
DADOS ADICIONAIS PARA SEREM INFORMADOS QUANDO O ACIONAMENTO É ATRAVÉS DE

POLIAS:
Potência do motor...........................................................kW=
Rotação do Motor..........................................................rpm=
Correias em V ou Plana.......................................................=
Tipo e dimensões da correia..........................................mm=
Diâmetro da polia motora...............................................DM=
Diâmetro da polia movida................................................da=
Distância entre centros das polias..................................DC=
Largura da polia.................................................................L=
Distância entre o centro das correias ao encosto do eixo x=
Qual das figuras refere-se a aplicação? 1( ) 2 ( ) 3 ( )
Qual o valor do ângulo (β)...................................................=

17
WEG MÁQUINAS
Av. Pref. Waldemar Grubba, 3000 89256-900 Jaraguá do Sul/SC
Tel. (047) 372-4000 Fax (047) 372-4030
São Paulo/SP: Tel. (011) 5053-2300 Fax (011) 5052-4202
www.weg.com.br

Motores de indução trifásicos características

Enviado por

Dados do documento

Título original

Direitos autorais

Formatos disponíveis

Compartilhar este documento

Compartilhar ou incorporar documento

Opções de compartilhamento

Você considera este documento útil?

Este conteúdo é inapropriado?

Direitos autorais:

Formatos disponíveis

Motores de indução trifásicos características

Enviado por

Direitos autorais:

Formatos disponíveis

Linha

Motores de Indução Trifásicos

% Potência Nominal Massa

OBS.: Valores sujeitos a alterações sem aviso prévio.

Este folheto é parte integrante do catálogo nº 628 Revisão: 01/10/02

% Potência Nominal Massa

OBS.: Valores sujeitos a alterações sem aviso prévio.

Este folheto é parte integrante do catálogo nº 628 Revisão: 01/10/02

% Potência Nominal Massa

OBS.: Valores sujeitos a alterações sem aviso prévio.

Este folheto é parte integrante do catálogo nº 628 Revisão: 01/10/02

% Potência Nominal Massa

OBS.: Valores sujeitos a alterações sem aviso prévio.

Este folheto é parte integrante do catálogo nº 628 Revisão: 01/10/02

% Potência Nominal Massa

OBS.: Valores sujeitos a alterações sem aviso prévio.

Este folheto é parte integrante do catálogo nº 628 Revisão: 01/10/02

% Potência Nominal Massa

OBS.: Valores sujeitos a alterações sem aviso prévio.

Este folheto é parte integrante do catálogo nº 628 Revisão: 01/10/02

% Potência Nominal Massa

OBS.: Valores sujeitos a alterações sem aviso prévio.

Este folheto é parte integrante do catálogo nº 628 Revisão: 01/10/02

% Potência Nominal Massa

OBS.: Valores sujeitos a alterações sem aviso prévio.

Este folheto é parte integrante do catálogo nº 628 Revisão: 01/10/02

% Potência Nominal Massa

OBS.: Valores sujeitos a alterações sem aviso prévio.

Este folheto é parte integrante do catálogo nº 628 Revisão: 01/10/02

% Potência Nominal Massa

OBS.: Valores sujeitos a alterações sem aviso prévio.

Este folheto é parte integrante do catálogo nº 628 Revisão: 01/10/02

% Potência Nominal Massa

OBS.: Valores sujeitos a alterações sem aviso prévio.

Este folheto é parte integrante do catálogo nº 628 Revisão: 01/10/02

- Segunda ponta de eixo opcional;

Este folheto é parte integrante do catálogo nº 628 Revisão: 01/10/02

- Segunda ponta de eixo opcional;

Este folheto é parte integrante do catálogo nº 628 Revisão: 01/10/02

OBS.: Detetores de temperatura tipo PT100 - 1 por mancal.

Este folheto é parte integrante do catálogo nº 628 Revisão: 01/10/02

DE (empresa/pessoa): ................................................................................. Fax: ...............................................

PARA (empresa/pessoa): ............................................................................ Fax: ...............................................

Modelo: ..........................................(melhor opção) Regime de Serviço: ...........................................(S1)

Este folheto é parte integrante do catálogo nº 628 Revisão: 01/10/02

INTERCAMBIABILIDADE ENTRE MOTORES COM FLANGE

Distância entre furos de pés (vista frontal)......A= Diâmetro da ponta de eixo..............................D=

ACOPLAMENTO POR POLIAS E CORREIAS

DADOS ADICIONAIS PARA SEREM INFORMADOS QUANDO O ACIONAMENTO É ATRAVÉS DE

Este folheto é parte integrante do catálogo nº 628 Revisão: 01/10/02

Você também pode gostar
