01 PDMSBrasil Forum Tutorial Comandos PDMS

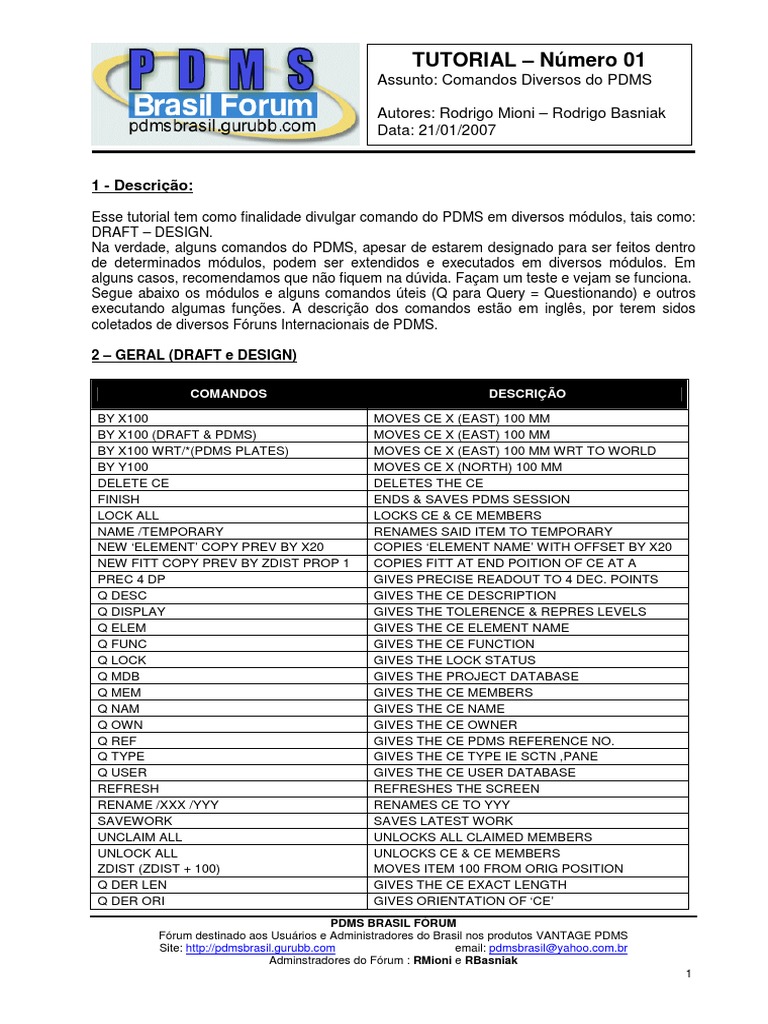

TUTORIAL – Número 01
Assunto: Comandos Diversos do PDMS
Autores: Rodrigo Mioni – Rodrigo Basniak

Data: 21/01/2007
1 - Descrição:
Esse tutorial tem como finalidade divulgar comando do PDMS em diversos módulos, tais como:
DRAFT – DESIGN.
Na verdade, alguns comandos do PDMS, apesar de estarem designado para ser feitos dentro
de determinados módulos, podem ser extendidos e executados em diversos módulos. Em
alguns casos, recomendamos que não fiquem na dúvida. Façam um teste e vejam se funciona.
Segue abaixo os módulos e alguns comandos úteis (Q para Query = Questionando) e outros
executando algumas funções. A descrição dos comandos estão em inglês, por terem sidos
coletados de diversos Fóruns Internacionais de PDMS.
2 – GERAL (DRAFT e DESIGN)
COMANDOS DESCRIÇÃO
BY X100 MOVES CE X (EAST) 100 MM

BY X100 (DRAFT & PDMS) MOVES CE X (EAST) 100 MM
BY X100 WRT/*(PDMS PLATES) MOVES CE X (EAST) 100 MM WRT TO WORLD
BY Y100 MOVES CE X (NORTH) 100 MM
DELETE CE DELETES THE CE
FINISH ENDS & SAVES PDMS SESSION
LOCK ALL LOCKS CE & CE MEMBERS
NAME /TEMPORARY RENAMES SAID ITEM TO TEMPORARY
NEW ‘ELEMENT’ COPY PREV BY X20 COPIES ‘ELEMENT NAME’ WITH OFFSET BY X20
NEW FITT COPY PREV BY ZDIST PROP 1 COPIES FITT AT END POITION OF CE AT A
PREC 4 DP GIVES PRECISE READOUT TO 4 DEC. POINTS
Q DESC GIVES THE CE DESCRIPTION
Q DISPLAY GIVES THE TOLERENCE & REPRES LEVELS
Q ELEM GIVES THE CE ELEMENT NAME
Q FUNC GIVES THE CE FUNCTION
Q LOCK GIVES THE LOCK STATUS
Q MDB GIVES THE PROJECT DATABASE
Q MEM GIVES THE CE MEMBERS
Q NAM GIVES THE CE NAME
Q OWN GIVES THE CE OWNER
Q REF GIVES THE CE PDMS REFERENCE NO.
Q TYPE GIVES THE CE TYPE IE SCTN ,PANE
Q USER GIVES THE CE USER DATABASE
REFRESH REFRESHES THE SCREEN
RENAME /XXX /YYY RENAMES CE TO YYY
SAVEWORK SAVES LATEST WORK
UNCLAIM ALL UNLOCKS ALL CLAIMED MEMBERS
UNLOCK ALL UNLOCKS CE & CE MEMBERS
ZDIST (ZDIST + 100) MOVES ITEM 100 FROM ORIG POSITION
Q DER LEN GIVES THE CE EXACT LENGTH
Q DER ORI GIVES ORIENTATION OF ‘CE’
PDMS BRASIL FÓRUM
Fórum destinado aos Usuários e Administradores do Brasil nos produtos VANTAGE PDMS
Site: http://pdmsbrasil.gurubb.com email: pdmsbrasil@yahoo.com.br
Adminstradores do Fórum : RMioni e RBasniak
1

Data: 21/01/2007
3 – DESIGN
ADD ALL EQUIP WITHIN VOL CE ADDS ALL EQUIPMENT THAT OVERLAPS CE
ADD ALL SCTN WITHIN VOL CE ADDS ALL SECTIONS THAT OVERLAP CE
ADD ALL WITHIN VOL CE ADDS ALL DISCIPLINES THAT OVERLAP CE
ADD ALL WITHIN VOL CE 100 ADDS ALL DISCIPLINES THAT OVERLAP CE WITH
A VOLUME OF 100MM ALL ROUND
ADD CE ADDS CE
ADD CE COL 39 ADDS CE WITH COL 39(SEE COLOUR SHEET)
ADD CREF ADDS CE PIPE CONNECTION REF
ADD SITE ADDS CE SITE
AID CLEAR LINE ALL REMOVES UNWANTED LINES FROM PDMS
AT IDP@ MOVES CE TO SELECTED PPOINT
AT IDP@ MOVES CE TO SELECTED PPOINT
AT IDPL@ MOVES CE TO SELECTED PLINE
AT IDPL@ MOVES CE TO SELECTED PLINE
AXES AT CE PLACES CE AXES
AXES OFF REMOVES CE AXES
BANGLE OF 180
BY D100 MOVES CE DOWN 100 MM
BY E100 MOVES CE EAST 100 MM
BY N100 MOVES CE NORTH 100 MM
BY U100 MOVES CE UP 100 MM
CHE CE GIVES CONSISTANCY CHECK ON CE
COL 39 YELLOW CHANGES LINE COL TO YELLOW
COL ACT BLUE CHANGES THE ACTIVE COLOUR TO BLUE
COL CE VIOLET CHANGES THE CE COLOUR TO VIOLET
EXT END -1000 EXTENDS THE END –1000
EXT END TO IDPL@STA EXTENDS THE END TO A SELECTED PLINE
MAR CE MARKS CE NAME
NEW PANE COPY PREV BY E200 COL 4 COPIES CE E200 COL 4
NEW SCTN COPY PREV BY E200 COPIES CE E200
NEW SCTN COPY PREV BY E200 COL 4 COPIES CE E200 COL 4
PROP 0 START POSITION CE
PROP 0.5 MIDDLE POSITION CE
PROP 1 END POSITION CE
Q ATT GIVES THE CE ATTRIBUTES
Q BANG GIVES THE CE BETA ANGLE
Q BORE (PIPING) GIVES THE PIPE INSIDE DIA
Q COL CE GIVES THE CURRENT ATTRIBUTED COLOUR
Q CREF GIVES THE CONNECTION REFERENCE
Q CUTL GIVES THE CE CUT LENGTH
Q DESP GIVES THE CE DESPERAMETERS
Q DNST GIVES THE CE DENSITY
PDMS BRASIL FÓRUM

2

Data: 21/01/2007
Q DRNE GIVES THE END CUT-PLANE DIRECTION

Q DRNS GIVES THE START CUT-PLANE DIRECTION
QE GIVES THE CE EAST CO-ORDINATE
Q FRAD GIVES THE PLOO/PAVE RADIUS IE 100MM
Q GCOF GIVES THE CE GROSS C OF G
Q GTYP GIVES THE GENERIC TYPE IE OD,HP,TG
Q GWEI GIVES THE CE GROSS WEIGHT
Q HEI GIVES THE CE (PLOO LVL) PLT THK
Q HH (PIPE SUPPT) GIVES THE CE HANGER HEAD CO-ORDS
Q HPOS (PIPING) GIVES THE CE PIPE HEAD CO-ORDINATES
Q HT (PIPE SUPPT) GIVES THE CE HANGER TAIL CO-ORDS
Q IDP @ WRT/* GIVES THE CE P POINT CO-ORDINATES
Q IDPL@ GIVES THE PLINE NAME USING CURSOR
Q INREF GIVES THE CE INREFERENCE
Q ISPEC (PIPING) GIVES THE CE (PIPE) INSULATION
Q JLIN GIVES THE CE JOINT LINE
Q JUSL GIVES THE CE JUSTIFICATION LINE
Q JUST GIVES THE C/VIEW JUSTIFICATION( IE LEFT )
Q LIST GIVES THE CE FITTINGS (NEG EXTR. ETC.)
Q MATREF GIVES THE CE MATERIAL REF
Q MTO GIVES THE CE MTO STATUS
Q NCOF GIVES THE CE NET C OF G
Q NSRF GIVES THE CE NET SURFACE
Q NVOL GIVES THE CE NET VOLUME
Q NWEI GIVES THE CE NET WEIGHT
Q OBS GIVES THE CE OBSTRUCTION LEVEL
Q ORI GIVES THE CE ORIENTATION (SLOPE)
Q PA (PIPING) GIVES THE CE ARRIVE CO-ORDINATES
Q PARA GIVES THE CE PARAMETERS IE SERIAL SIZES
Q PH (PIPING) GIVES THE CE PIPE HEAD ATTRIBUTES
Q PH BORE (PIPING) GIVES THE CE (PIPE HEAD) BORE
Q PH OD (PIPING) GIVES THE CE (PIPE HEAD) DIAMETER
Q PI WRT/* (PIPING) GIVES THE CE (PIPE SUPPT) LOCATION
Q PL WRT/* (PIPING) GIVES THE CE HVAC LEAVE CO-ORDINATES
Q POS GIVES THE CE CO-ORDINATES (START / ORIGIN)
Q POS FITT GIVES THE C/FITT CO-ORDINATES (START)
Q POS IDPL@ GIVES THE PLINE CO-ORD AT CE START
Q POS IN $V1 GIVES THE CE DISTANCE TO VAR. $V1
Q POS PPLI BOS WRT/* GIVES THE BOS PLINE CO-ORDINATES
Q POS PPLI NA PROP 0.5 GIVES THE CENTRE CO-ORDINATE
Q POS WRT/* GIVES ORIGIN OF CE WITH REGARD TO WORLD
Q POSE GIVES THE CE END CO-ORDINATES
Q POSS GIVES THE CE START CO-ORDINATES
Q POSS POSE GIVES THE CE BOTH END CO-ORDINATES
Q PT (PIPING) GIVES THE CE PIPE TAIL ATTRIBUTES
Q PT OD (PIPING) GIVES THE CE (PIPE TAIL) DIAMETER
PDMS BRASIL FÓRUM

3

Data: 21/01/2007
Q RAD (HVAC) GIVES THE CE RADIUS

Q REPRES GIVES THE CE REPRESENTATION STATUS
Q SJUS GIVES THE PLOO JUSTIFICATION IE UTOP
Q SPRE GIVES THE CE SPECIFICATION REFERENCE
Q TCTL OR (Q CUTL) GIVES THE CE CUT LENGTH?
Q TPOS (PIPING) GIVES THE CE PIPE TAIL CO-ORDS.
Q VOL CE GIVES THE CE VOLUME
Q ZDIS GIVES THE CE FITTING DIST FROM START
REM CE REMOVES THE CE
REMOVES HOLE REPRESENTATION (APPLY
REPRES HOLES OFF
‘ADD’ IN DRAWLIST)
ADDS HOLES REPRESENTATION (APPLY ‘ADD’
REPRES HOLES ON
IN DRAWLIST)
REPRES OBSTRUCTION OFF REMOVES OBSTRUCTION REPRESENTATION
REPRES PNODE COL YELLOW PRIMARY NODES SHOWN YELLOW
REPRES PNODE ON PRIMARY NODES SHOWN ONLY
REPRES PNODE SIZE 6 CHANGES PRIMARY NODES TO 6MM
REPRES PROF ON CL OFF SETS PROFILE REPR AS SOLID
REPRES SNODE OFF SECONDARY NODES OFF
ROT ABO IDP@ BY 90 ROTATES CE LOCAL TO PPOINT BY 90 DEG.
ROT ABO IDPL@ BY 90 ROTATES CE LOCAL TO PLINE BY 90 DEG.
ROT ABO P1 BY 90 ROTATES CE ABOUT P1 BY 90 DEG.
ROT THR IDP@ BY 90 ROTATES CE ABOUT ANY PPOINT BY 90 DEG.
ROT THR IDPL@ BY 90 ROTATES CE ABOUT ANY PLINE BY 90 DEG.
ROT THRO MIDP ABO D BY 90 ROTATES CE ABOUT MIDP POS BY 90 DEG
ROT THRO POSE ABO D BY 30 ROTATES CE ABOUT END POS BY 30 DEG
ROT THRO POSS ABO D BY 45 ROTATES CE ABOUT START POS BY 45 DEG
UNM CE UNMARKS CE NAME
PDMS BRASIL FÓRUM

4

Data: 21/01/2007
4 – DRAFT
ADEG 0 MODIFIES TEXT HORIZONTAL

ADEG 45 MODIFIES TEXT/PRIMITIVES AT 45 DEG.
ADEG 90 MODIFIES TEXT VERTICAL
APOFFSET 5 -5 RE-POSITIONS LTER END X5 Y-5
AT @ MOVES CE TO NEW CURSOR POS
AT @ MOVES CE TO NEW CURSOR POS
BLNK FALSE TEXT REMOVES BLANKED AREA BELOW
BLNK TRUE TEXT BLANKS ALL IT OVERLAYS
BTEXT’A-A’ MODIFIES TEXT TO A-A
CPOFFSET 5 -5 RE-POSITIONS LEADER LINE START X5 Y-5
DIM TEX’#100 TYP’ DIMENSION TEXT READS 100 TYP
DPOS @ PLACES THE LDIM POSITION BY CURSOR
DTAN DEF DIMENSION TEXT DEFAULT
DTAN HOR DIMENSION TEXT HORIZONTAL
DTAN PAR DIMENSION TEXT PARALLEL
DTAN PAR DTOF 8 0 DIM TEXT PAR. & OFF X-8 Y0
DTAN STAN DIMENSION TEXT STANDARD
DTAN VERTICAL DIMENSION TEXT VERTICAL
DTOF @ DIMENSION TEXT BY CURSOR
DTOF 0 4 DIMENSION TEXT OFFSET X0 Y4
FPT @ MOVES STRA FROM POINT BY CURSOR
FPT BY X2 Y-2 MOVES STRA FROM POINT BY TYPED INPUT
FRAME ON TEXT FRAME ON
GAP @ LETS CURSOR DETERMINE DIMENSION GAP
GAP DELETE ALL DELETES ALL DIMESION GAPS
GAP DELETE AT DELETES DIMENION GAP BY CURSOR
GBOX 5 MODIFIES TEXT FRAME WITH 5 CLEARANCE
GETWORK GETS LATEST MODEL
REPOSITIONS CIRC 1 TO PREV. SELECTED
INCL CIRC 1 OF NOTE/TABLE
DESTINATION
REPOSITIONS CIRC 1 TO PREV. SELECTED
INCL CIRC 1 OF NOTE/TABLE
DESTINATION
INCL ID@ GIVES THE CE CO-ORDINATES (START) OR
ITEM TO BE TRANSFERED
INCL NAME REPOSITIONS CE TO A SELECTED DESTINATION
INCL NAME REPOSITIONS CE TO A SELECTED DESTINATION
LEAD BENT @ PLACES ANOTHER VERTEX ON LEADERLINE
LEAD STRA CHANGES LEADERLINE TO STRAIGHT
LLEAD FALSE LEADERLINE OFF
LLEAD TRUE LEADERLINE ON
LTER ARR LINE TERMANATOR ARROW
LTER DOT LINE TERMANATOR DOT
PDMS BRASIL FÓRUM

5

Data: 21/01/2007
LTER OBL LINE TERMANATOR DASH

LTER OFF LINE TERMANATOR OFF
LVIS FALSE TURNS CE VISIBILITY OFF
LVIS TRUE TURNS CE VISIBILITY ON
MODIFY @ ENABLES MODS TO SLAB/GLAB GEOMETRY
NEW CIRCLE DIAM 100 AT@ DRAWS CIRCLE AND POSITIONS BY CURSOR
NEW CIRCLE RAD 50 AT@ DRAWS CIRCLE AND POSITIONS BY CURSOR
NEW GLAB COPY $V1 COPIES GLAB AS VARIABLE $V1
NEW GLAB COPY $V1 COPIES GLAB AS VARIABLE $V1
NEW GLAB COPY PREV AT @ COPIES GLAB TO PICKED LOCATION
NEW GLAB COPY PREV AT @ COPIES GLAB TO PICKED LOCATION
NEW GLAB COPY PREV AT@ COPIES TEXT AND POSITIONS BY CURSOR
NEW RECT XLEN40 YLEN20 ANG 45 ORIG
CORNER AT@ DRAWS RECT AND POSITIONS IT BY CURSOR
NEW SYMB COPY PREV BY X-10 COPIES CE X-10
NEW TEXP COPY PREV BY Y10 COPIES CE Y10
NEW VRTX COPY PREV BY X10 COPIES CE X10 (CLOUDS)
NLPN OFF TURNS LINE OFF (IE CLOUD VERTEX)
NLPN OFF TURNS LINE OFF (IE CLOUD VERTEX)
OSHT @ DIM LINE OVERSHOOT BY CURSOR
OSHT 10 DIM LINE OVERSHOOT 10MM
PKEY LTOC CHANGES DIM FROM EXIST JUSL TO LTOC
PLCL@ POSITION LEADER LINE BY CURSOR
PROJ CLEAR @ SETS PROJECTION LINE POSITION BY CURSOR
PROJ CLEAR 5 SETS PROJECTION LINE POSITION BY 5MM
PROJ TEX’TYP’ PROJECTION TEXT READS TYP
PTAN HOR PROJECTION TEXT HORIZONTAL
PTAN PAR PROJECTION TEXT PARALLEL
PTAN VERTICAL PROJECTION TEXT VERTICAL
PTOF -8 0 PROJECTION TEXT OFFSET X-8 Y0
Q ADEG GIVES THE C/VIEW ANGLE ( IE 90 DEG )
Q ADEG GIVES THE C/VIEW ANGLE ( IE 90 DEG )
Q ANGLE (BRAN MEMBER) GIVES THE CE ANGLE
Q APOF GIVES THE CE (NOTE) TERMINATOR POS’N
Q ATEX GIVES THE SLAB/GLAB TEXT ATTRIBUTES
Q BSRF GIVES THE DRG. SHT. REF. (STRU LVL)
Q BSRF GIVES THE ATTACHEDDRG/SHT (DRWG LVL)
Q BTEX GIVES THE DEAD TEXT ATTRIBUTES
Q CHEI GIVES THE TEXT CHARACTER HEIGHT
Q CHEIGHT GIVES THE TEXT CHARACTER HEIGHT
Q COL 4 (ETC) GIVES THE ATTRIBUTED COLOUR (YELLOW)
Q COL ACT GIVES THE CURRENT ACTIVE COLOUR
Q COL AIDS GIVES THE CURRENT AID LINE COLOUR
Q COL VIS GIVES THE CURRENT VISIBLE COLOUR
Q CPOF GIVES THE CE (NOTE) LEADER LINE POS’N
Q DDNAME GIVES THE DIMENSION OWNERS NAME
PDMS BRASIL FÓRUM

6

Data: 21/01/2007
Q DIR GIVES THE C/VIEW DIRECTION( IE N )

Q DMTXT GIVES THE DIM TEXT ATTRIBUTES
Q DPOS GIVES THE LDIM POSITION ON SHEET
Q DPOS GIVES THE LDIM POSITION ON SHEET
Q DTER GIVES THE LAYER/LDIM TERM’TR DEFAULT
Q DTER GIVES THE LAYER/LDIM TERM’TR DEFAULT
Q DTOF GIVES DIMENSION TEXT X AND Y VALUE
Q FPT GIVES THE STRA FROM POINT CO-ORDS
Q FPT GIVES THE STRA FROM POINT CO-ORDS.
Q LEN GIVES THE STRA LENGTH
Q LEV GIVES THE CE LEVEL (OBSTRUCTION ETC)
Q LHEI GIVES THE TEXT LETTER HEIGHT
Q LHEI GIVES THE TEXT LETTER HEIGHT
Q LSHAPE GIVES THE LABEL LEADER LINE STATUS
Q MPT GIVES THE STRA MID POINT CO-ORDS
Q PKEY GIVES THE DIM PLINE STATUS (IE TCTF)
Q PKEY GIVES THE DIM PLINE STATUS (IE TCTF)
Q PLCL GIVES THE DIM PROJECTION LINE CLEARANCE
Q PLTXT GIVES THE PROJ TEXT ATTRIBUTES
Q POS PLRF GIVES THE CURRENT VSEC CO-ORDS
Q POS PLRF GIVES THE CURRENT VSEC CO-ORDS.
Q RRSF GIVES THE CURRENT VIEW RULE SETTINGS
Q RRSF GIVES THE CURRENT VIEW RULE SETTINGS
Q SIZE GIVES THE VIEW O/ALL DIMENSIONS
Q SIZE GIVES THE VIEW O/ALL DIMENSIONS
Q SNAP GIVES THE SNAP SETTINGS (ON/OFF)
Q SNAP GIVES THE SNAP SETTING (ON/OFF)
Q THPOS GIVES THE C/VIEW MATCHLINE CO-ORDS
Q TMRF GIVES THE CE (SYMBOL) NAME
Q TPT GIVES THE STRA TAIL POINT CO-ORDS
Q TPT GIVES THE STRA TAIL POINT CO-ORDS.
Q VLIMITS GIVES THE VIEW LIMITS
Q VRAT GIVES SCALE RATIO (IE 1 TO 25)
Q VSCALE GIVES THE C/VIEW SCALE ( IE 0.5 )
Q VSCALE GIVES THE C/VIEW SCALE ( IE 0.5 )
Q VTYP GIVES THE VIEW ATT(IE.GLOBAL HIDDEN)
Q VTYP GIVES THE VIEW ATT(IE.GLOBAL HIDDEN)
Q XYPOS GIVES THE VIEW POSITION ON SHEET
Q XYPOS GIVES THE VIEW POSITION ON SHEET
RCOD LEFT ROTATES VIEW BOX LEFT
REPEAT 5 BY X10 COPIES CE 5 TIMES BY 10MM SPACES
REPRES DARC 1 SETS ARC TOLERENCE TO 1MM
REPRES DARC DEF SETS ARC TOLERENCE TO 10MM (DEFAULT)
SNAP ON 10 GIVES SNAP GRID X10 Y10
SNAP ON SPACING X10 Y20 GIVES SNAP GRID X10 Y20
SNAP ON/OFF TURNS SNAP ON/OFF
PDMS BRASIL FÓRUM

7

Data: 21/01/2007
TPEN 71 GIVES THE TEXP COLOUR ATTRIBUTE 71

TPT @ MOVES STRA TO POINT BY CURSOR
TPT BY X2 Y-2 TPT BY X2 Y-2
UPDATE DESIGN UPDATES DESIGN
UPDATE PICTURE UPDATES GRAPHICS
VGRID ON/OFF TURNS SNAP GRID VISIBILITY ON/OFF
Q TPEN GIVES THE TEXP COLOUR ATTRIBUTES
FLIP CE FLIPS CE
HIGH CE HIGHLIGHTS CE
Q LVIS GIVES THE CE VISIBILITY
Q MEML GIVES THE CE MEMBER LINE
Q MIDP GIVES THE CE MIDPOINT CO-ORDINATES
PDMS BRASIL FÓRUM

8

01 PDMSBrasil Forum Tutorial Comandos PDMS

Enviado por

Dados do documento

Descrição original:

Direitos autorais

Formatos disponíveis

Compartilhar este documento

Compartilhar ou incorporar documento

Opções de compartilhamento

Você considera este documento útil?

Este conteúdo é inapropriado?

Direitos autorais:

Formatos disponíveis

01 PDMSBrasil Forum Tutorial Comandos PDMS

Enviado por

Direitos autorais:

Formatos disponíveis

TUTORIAL – Número 01

Assunto: Comandos Diversos do PDMS

Autores: Rodrigo Mioni – Rodrigo Basniak

2 – GERAL (DRAFT e DESIGN)

BY X100 MOVES CE X (EAST) 100 MM

Autores: Rodrigo Mioni – Rodrigo Basniak

PDMS BRASIL FÓRUM

Autores: Rodrigo Mioni – Rodrigo Basniak

Q DRNE GIVES THE END CUT-PLANE DIRECTION

PDMS BRASIL FÓRUM

Autores: Rodrigo Mioni – Rodrigo Basniak

Q RAD (HVAC) GIVES THE CE RADIUS

PDMS BRASIL FÓRUM

Autores: Rodrigo Mioni – Rodrigo Basniak

ADEG 0 MODIFIES TEXT HORIZONTAL

PDMS BRASIL FÓRUM

Autores: Rodrigo Mioni – Rodrigo Basniak

LTER OBL LINE TERMANATOR DASH

PDMS BRASIL FÓRUM

Autores: Rodrigo Mioni – Rodrigo Basniak

Q DIR GIVES THE C/VIEW DIRECTION( IE N )

PDMS BRASIL FÓRUM

Autores: Rodrigo Mioni – Rodrigo Basniak

TPEN 71 GIVES THE TEXP COLOUR ATTRIBUTE 71

PDMS BRASIL FÓRUM

Você também pode gostar
