Product Catalog \ CONSTRUCTION \ CONSTRUCTION / INDUSTRIAL \ MINI CRAWLER EXCAVATORS \ 8026 CTS
01779000-01780499,02097875-02098875 9822/0465 \ B BODYWORK \ B04 EXCAVATOR

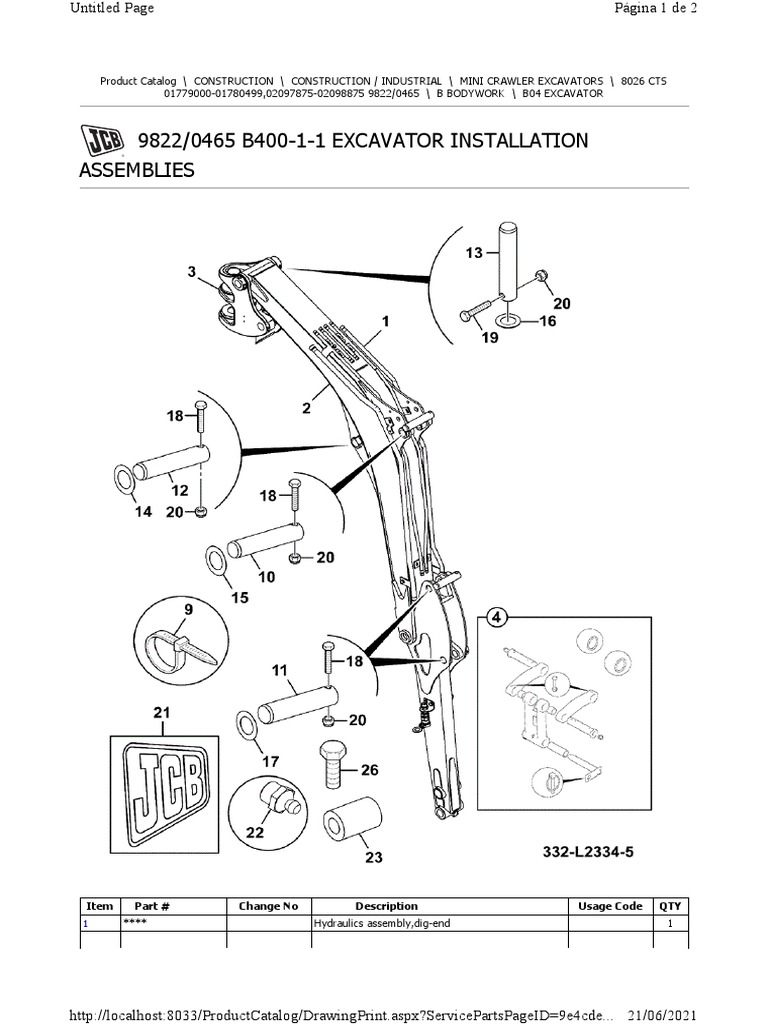

9822/0465 B400-1-1 EXCAVATOR INSTALLATION

ASSEMBLIES

Item Part # Change No Description Usage Code QTY

1 **** Hydraulics assembly,dig-end 1

http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID=9e4cde... 21/06/2021
Untitled Page Página 2 de 2

2 **** Boom boom 1

3 **** Kingpost assembly 1
4 **** Link assembly,bucket 1
9 204/07006 Tie Cable 5
Pin -Pivot, 39.95/39.90x19
10 334/P2310 1
DIP RAM AT BOOM
11 334/P2322 Pin -Pivot 2
Pin -Pivot
12 334/P2323 1
BOOM RAM AT BOOM
Pin -pivot
13 334/P2342 1
DIPPER MAIN PIVOT
14 823/10229 Shim 0.5mm 4
15 823/10228 Shim 1.5mm 4
16 823/10347 Shim 0.5/0.6mm o/dia 65mm 1
17 819/00049 Shim 1.4mm 2
18 1315/3418D Bolt M10 x 80 4
Bolt M10 x 90mm
19 1315/3419D 1
DIPPER PIVOT
Nut Self Lock M10
20 1370/0303D 5
PIVOT PINS
21 817/18651 Decal JCB, black 176mm wide 2
22 1450/0001 Nipple Grease, Straight 1/8 BSP 5
23 332/K3536 Spacer 30mm 1
26 1315/0314D Screw M8 x 60 1
